(8-16) - HYDRAULIC CIRCUIT, LOADER AUXILIARY, CONTROL VALVE TO AUXILIARY BUCKET CYLINDERS, Z-BAR LOADER

Запчасти Case 621B (8-16) - HYDRAULIC CIRCUIT, LOADER AUXILIARY, CONTROL VALVE TO AUXILIARY BUCKET CYLINDERS, Z-BAR LOADER (08) - HYDRAULICS

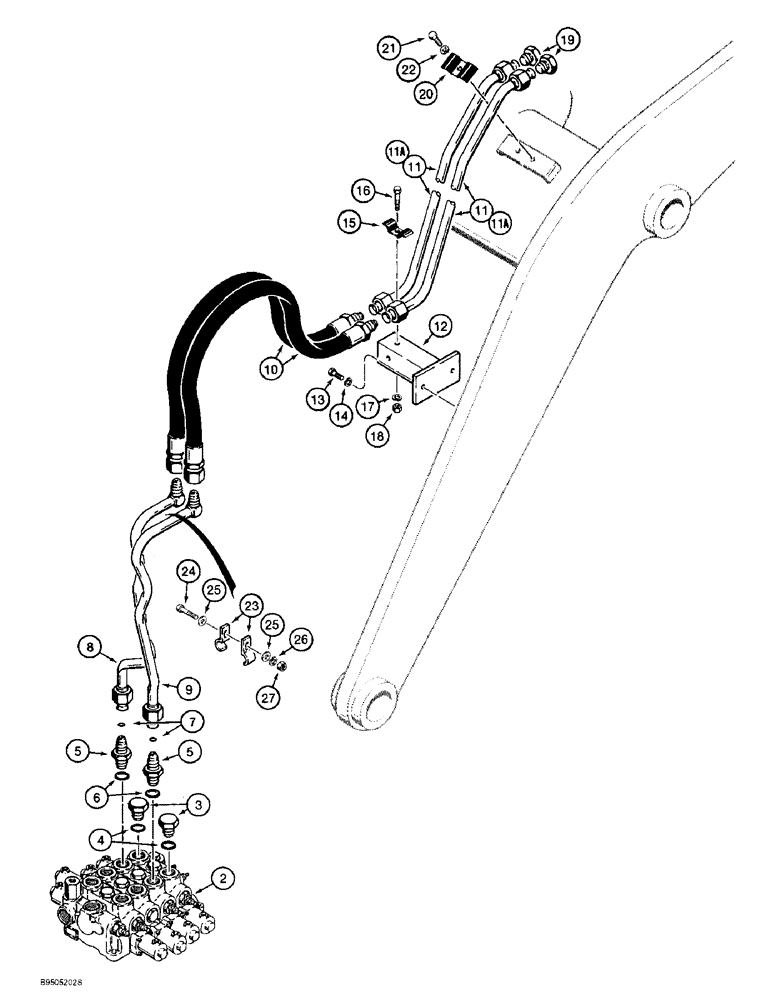

Схема запчастей Case 621B - (8-16) - HYDRAULIC CIRCUIT, LOADER AUXILIARY, CONTROL VALVE TO AUXILIARY BUCKET CYLINDERS, Z-BAR LOADER (08) - HYDRAULICS
26
27
18
25
9
17
11
20
25
6
3
15
13
5
19
14
2
10
21
12
22
7
5
11a
11a
23
24
8
4
11
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve Assy, control, three spool, not shown, see Figure 8-06 for correct assembly

1шт.

2

REF

INSTRUCTION

Valve Assy, control, four spool, see Figure 8-06 for correct assembly

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 4, Use to plug ports of fourth valve section on units with a four spool valve

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

L124291

FITTING

ADAPTER straight, special, valve to tubes, Includes: Ref. 6 and 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

7

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Flare end

1шт.

8

L126182

TUBE,25.4 mm OD

left-hand, left-hand, at loader control valve

1шт.

9

L126180

TUBE,25.4 mm OD x 802, 248 mm L

right-hand, right-hand, at loader control valve

1шт.

10

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

1100 mm (43-5/16 inch) long, tube at loader control valve to tube on lift arm

2шт.

11

L126486

PIPE,25.4 mm OD

left-hand and right-hand, at loader arm, standard loader models

2шт.

11a

127487A1

HYD TUBE

left-hand and right-hand, at loader arm, extended reach loader models

2шт.

12

346304A1

SUPPORT

BRACKET mounting, tubes, replaces L126511 bracket

1шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R15257

CLAMP

tube

1шт.

16

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

Standard loader models

1шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

Extended reach loader models

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-779

PLUG,1 5/16"-12, 37 Degree

Hex, use when auxiliary attachments are not used

2шт.

20

R15257

CLAMP

tubes

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

L32065

CLAMP

tubes

2шт.

24

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
