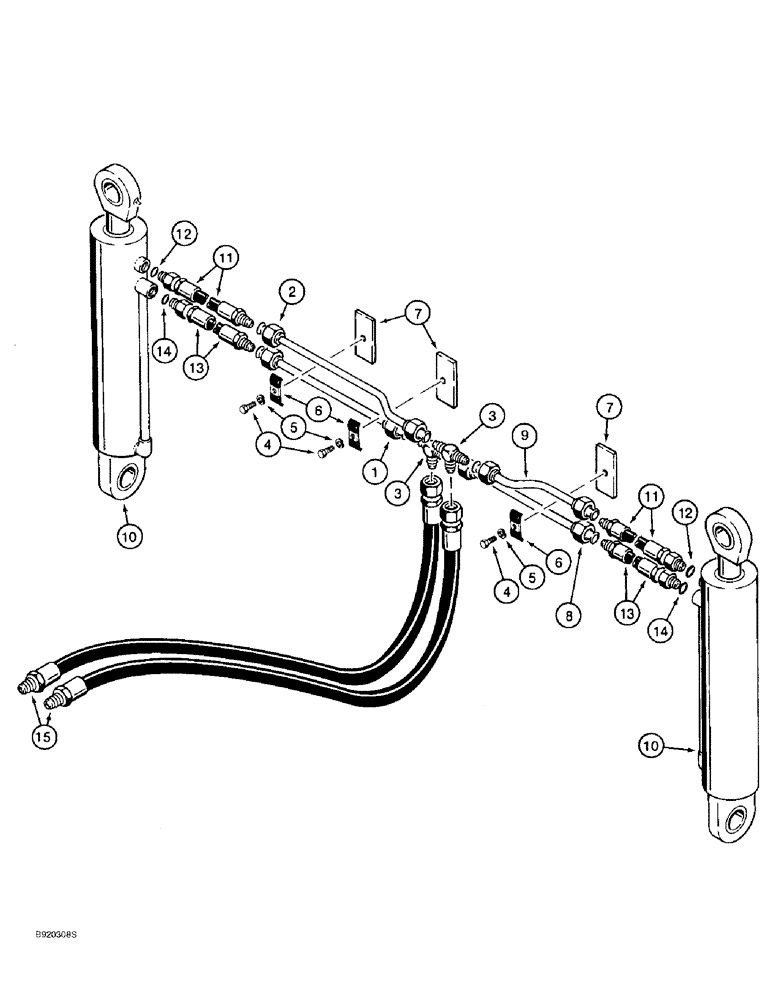

Запчасти Case 621B (8-18) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

1

S300151

PIPE

auxiliary cylinder hydraulics, lower left-hand

1шт.

2

S301638

TUBE ASSY.

auxiliary cylinder hydraulics, upper left-hand

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

TEE, 1-1/16-12 inch flare branch x flare x flare, to auxiliary cylinders

2шт.

4

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

6

S300148

FIXING BRACKET

tube support

3шт.

7

S300779

SUPPORT

BLOCK tapped

3шт.

8

S301641

TUBE ASSY.

auxiliary cylinder hydraulics, lower right-hand

1шт.

9

S301637

TUBE ASSY.

auxiliary cylinder hydraulics, upper right-hand

1шт.

10

S301431

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 (4) ID x 254 mm (10 inch) stroke, see Figure 8-56

2шт.

11

S301639

HOSE

upper auxiliary cylinder, Includes: Ref. 12

2шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

S301640

HOSE

lower auxiliary cylinder, Includes: Ref. 14

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

S300149

HYDRAULIC HOSE

auxiliary cylinder tee to tubes at loader arm cross tube

2шт.
