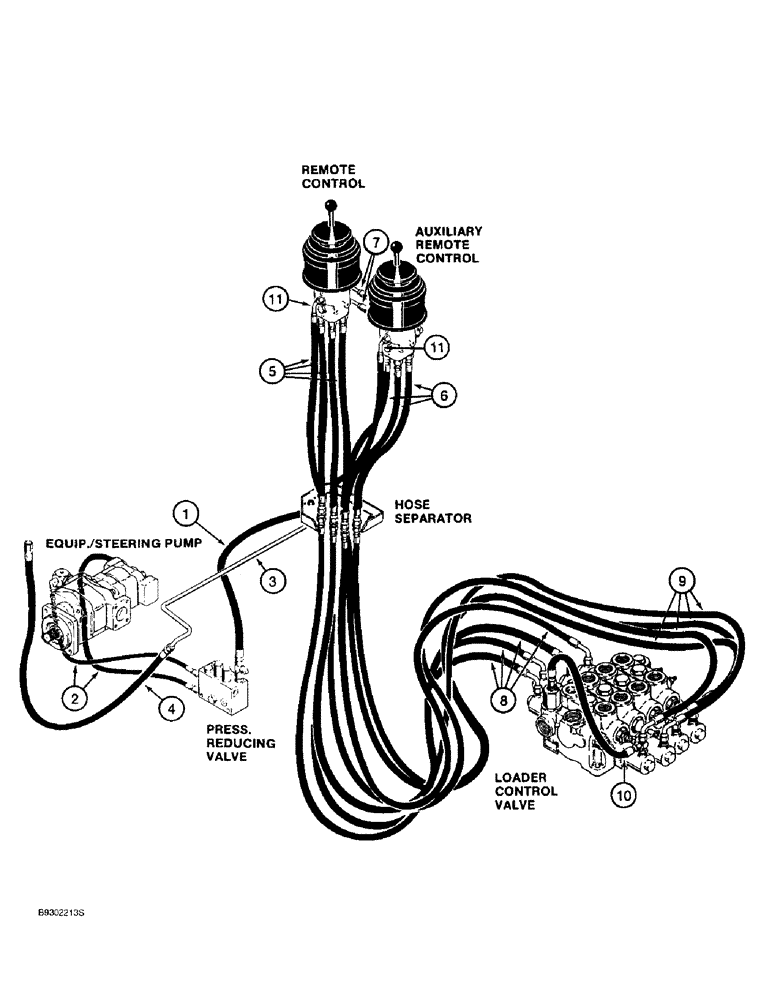

Запчасти Case 621B (1-24) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT- Z-BAR LOADER, FOUR SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure reducing valve - Figure 8-78

1шт.

2

Hose, pressure reducing valve to elbow at steering pump - Figure 8-78

1шт.

3

Tube, hose separator to hose at hydraulic reservoir - Figure 8-78

1шт.

4

Hose, at hydraulic reservoir - Figure 8-78

1шт.

5

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B - Figure 8-74

1шт.

6

Hose, auxiliary remote control to hose separator port 3A, 3B, 4A, and 4B - Figure 8-74

1шт.

7

Hose, auxiliary remote control to remote control - Figure 8-74

1шт.

8

Hose, hose separator to ports 1B, 2A, 3B and 4B - Figure 8-76

1шт.

9

Hose, hose separator to ports 1A, 2B, 3A and 4A - Figure 8-76

1шт.

10

Hose, inlet and outlet section to tee at port 1A - Figure 8-76

1шт.

11

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports - Figure 8-74

1шт.
