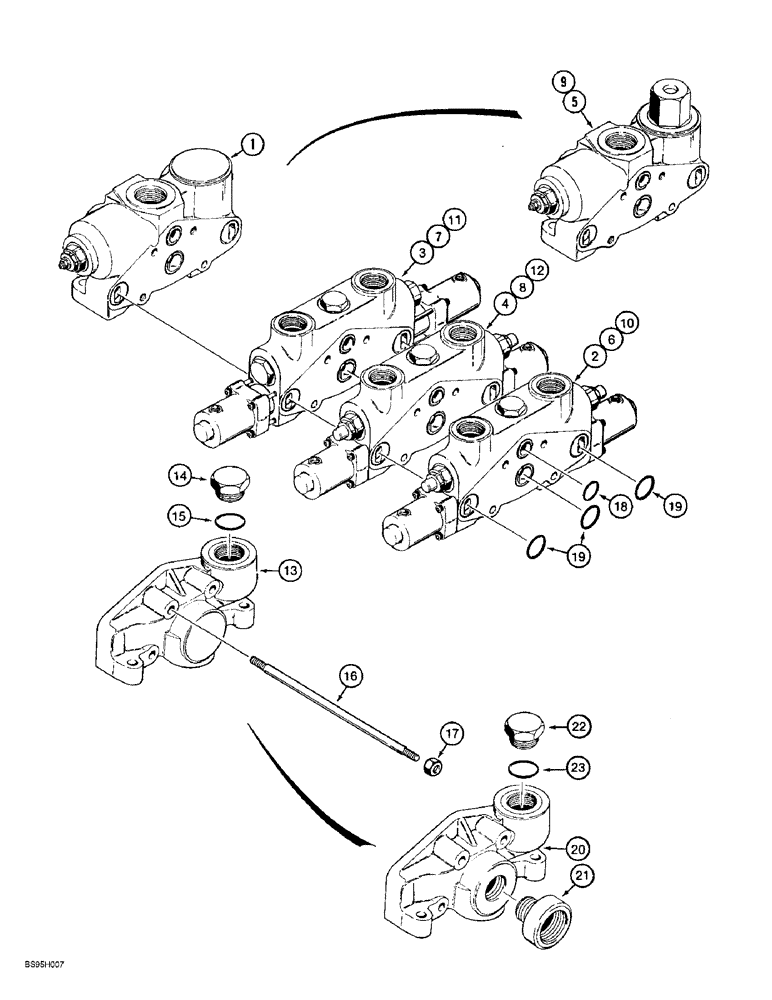

Запчасти Case 621B (8-33A) - LOADER CONTROL VALVE, THREE SPOOL, XT LOADER, 114617A1, 133731A1, 138754A1 VALVE ASSEMBLIES (08) - HYDRAULICS

114617A1

VALVE

ASSEMBLY control, three spool, V50-464-C stamped on part, Includes: Ref. 1 - 4, no longer available, order 138754A1 valve assembly, 135646A1 tube, 218-5222 tee, and 218-5278 elbow

1шт.

1

120978A1

SECTOR

ASSEMBLY inlet and outlet, see Figure 8-36

1шт.

2

1978280C1

SECTOR

ASSEMBLY auxiliary, see Figure 8-44

1шт.

3

120984A1

SECTOR

ASSEMBLY bucket, see Figure 8-42

1шт.

4

125844A1

SECTOR

ASSEMBLY lift, see Figure 8-39A

1шт.

133731A1

VALVE

ASSEMBLY control, three spool, V50-518 stamped on part, Includes: Ref. 5 - 8, no longer available, order 138754A1 valve assembly

1шт.

5

1978263C1

VALVE

Section Assembly inlet and outlet, see Figure 8-36

1шт.

6

1978280C1

SECTOR

ASSEMBLY auxiliary, see Figure 8-44

1шт.

7

120984A1

SECTOR

ASSEMBLY bucket, see Figure 8-42

1шт.

8

190298A1

HYD VALVE SECTION

ASSEMBLY lift, see Figure 8-39C

1шт.

138754A1

VALVE

ASSEMBLY control, three spool, V50-518-C stamped on part, Includes: Ref. 9 - 12

1шт.

9

1978263C1

VALVE

Section Assembly, inlet and outlet, see Figure 8-36

1шт.

10

1978280C1

SECTOR

ASSEMBLY auxiliary, see Figure 8-44

1шт.

11

120984A1

SECTOR

ASSEMBLY bucket, see Figure 8-42

1шт.

12

190298A1

HYD VALVE SECTION

ASSEMBLY lift, see Figure 8-39C

1шт.

13

1978278C1

SECTOR

PLATE cover, end, Includes: Ref. 14 and 15, parts common to all valve assemblies

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Replaces D54275 plug, parts common to all valve assemblies

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Parts common to all valve assemblies

1шт.

16

189909A1

STUD

three spool control valve, parts common to all valve assemblies

4шт.

17

425-107

NUT,7/16"-14, G5

Parts common to all valve assemblies

4шт.

120988A1

SEAL KIT

Includes: Ref. 18 and 19, parts common to all valve assemblies

1шт.

18

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

Parts common to all valve assemblies

4шт.

19

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

Parts common to all valve assemblies

12шт.

L36348

KIT

power beyond, Includes: Ref. 20 - 23 plus instructions

1шт.

20

S301432

COVER

outlet

1шт.

21

S301433

SLEEVE

power beyond

1шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
