(8-36) - LOADER INLET AND OUTLET SECTION, 1978263C1, 120978A1

Запчасти Case 621B (8-36) - LOADER INLET AND OUTLET SECTION, 1978263C1, 120978A1 (08) - HYDRAULICS

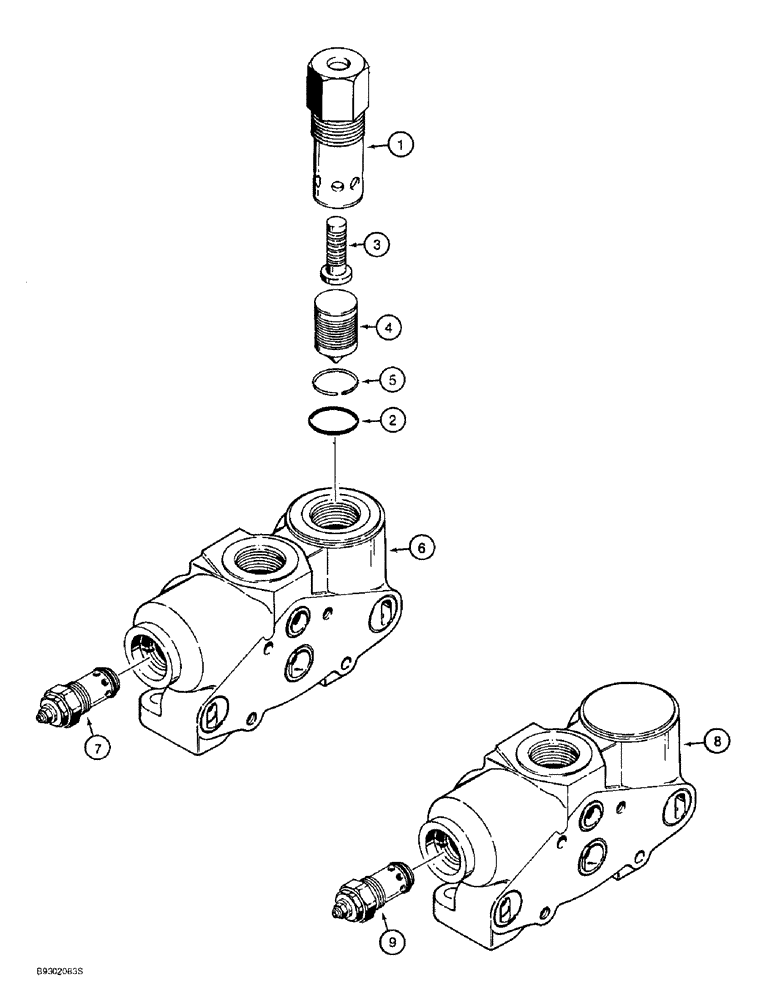

Схема запчастей Case 621B - (8-36) - LOADER INLET AND OUTLET SECTION, 1978263C1, 120978A1 (08) - HYDRAULICS
2
3
1
6
4
7
5
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1978263C1

VALVE

Section Assy, inlet and outlet, Includes: Ref. 1 - 7

1шт.

1978274C1

GOVERNOR

Valve Assy, low pressure regeneration, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Body, valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Plunger, valve

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, low pressure regeneration

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, retaining, valve

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, inlet and outlet section

1шт.

7

102210A1

VALVE

ASSEMBLY relief, with flat screen on poppet, see Figure 8-46, see your service manual for proper pressure setting

1шт.

120978A1

SECTOR

ASSEMBLY inlet and outlet, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

Housing inlet and outlet section

1шт.

9

102210A1

VALVE

ASSEMBLY relief, with flat screen on poppet, see Figure 8-46, see your service manual for proper pressure setting

1шт.
