(8-60) - COUPLER LOCKING SOLENOID VALVE

Запчасти Case 621B (8-60) - COUPLER LOCKING SOLENOID VALVE (08) - HYDRAULICS

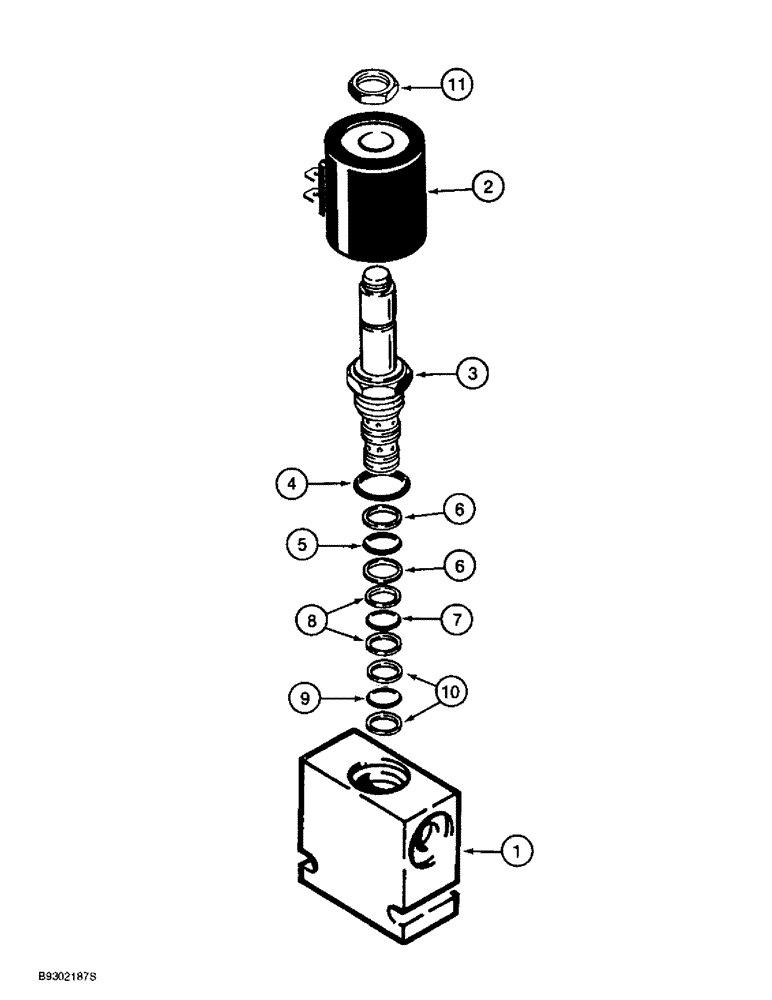

Схема запчастей Case 621B - (8-60) - COUPLER LOCKING SOLENOID VALVE (08) - HYDRAULICS
6
1
11
7
10
8
3
4
2
9
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

118857A1

VALVE

ASSEMBLY solenoid, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

124637A1

SOLENOID

ASSEMBLY, Includes 124639A1 Seal Kit; Assembly No Longer Includes 124638A1 Solenoid, Purchase Separately

1шт.

2

124638A1

SOLENOID

valve

1шт.

3

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

124639A1

SEAL KIT

Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - upper

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - position 1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, position 1

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING - position 2

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, position 2

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - position 3

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, position 3

2шт.

11

NSS

NOT SOLD SEPARAT

NUT - hex, special

1шт.
