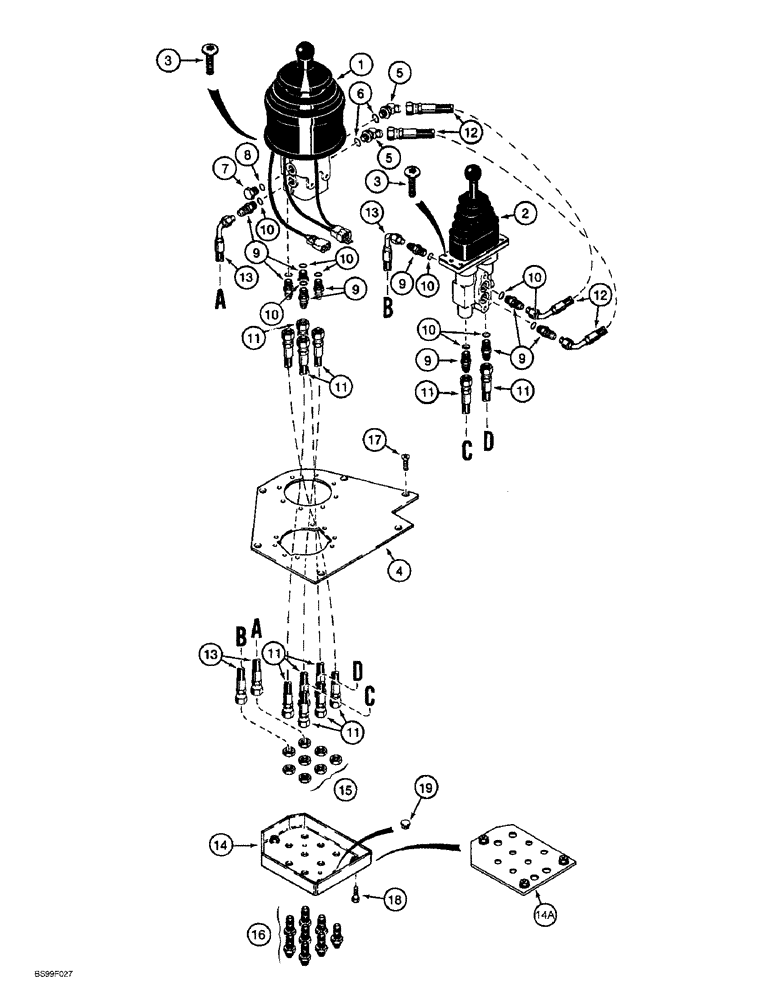

Запчасти Case 621B (8-68) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH THREE SPOOL VALVE (08) - HYDRAULICS

1

109508A1

VALVE

ASSEMBLY control, single lever remote, see Figure 8-80

1шт.

1

109508A1R

REMAN-HYD VALVE

Reman ASSEMBLY control, single lever remote, see Figure 8-80

1шт.

1

109508A1C

CORE-VALVE HYD

Return Number

1шт.

2

L123917

VALVE

ASSEMBLY remote, single lever, auxiliary, see Figure 8-88

1шт.

3

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

4

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote control

1шт.

5

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

7

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 8

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

10шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

419 mm (16-1/2 inch) long, remote control to hose separator

6шт.

12

1339962C1

HOSE,9.53mm ID x 254mm L, SAE 100R1

254 mm (10 inch) long, auxiliary remote control to remote control

2шт.

13

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

502 mm (19-7/8 inch) long, remote control and auxiliary remote control to pressure reducing valve

2шт.

14

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

14a

137716A2

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

straight, 9/16-18 inch flare x bulkhead flare

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

1/4 NC x 3/4 inch

6шт.

18

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

3шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

5/8 inch

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
