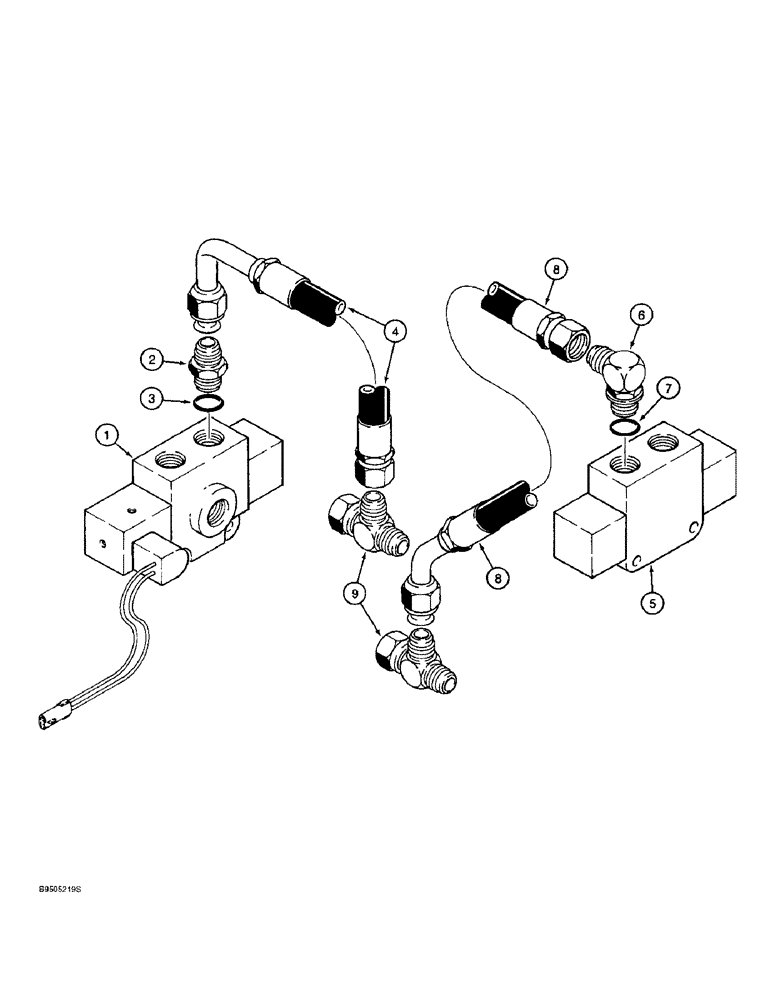

Запчасти Case 621B (8-98) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES (08) - HYDRAULICS

1

107866A1

VALVE

ASSEMBLY master directional, with electrical connector, see Figure 8-99

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, O-Ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

4

132977A1

HOSE ASSY.

510 mm (20 in) long, To Right hand Rod End Cylinder Tube

1шт.

See Figure 8-10 for lift tubes used on models with ride control.

1шт.

5

106488A1

VALVE

ASSEMBLY directional control, see Figure 8-99A

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref.7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

132979A1

HOSE ASSY.

400 mm (15-3/4 in) long, Directional Valve to Right Hand Closed End Cylinder Tube

1шт.

See Figure 8-10 for lift tubes used on models with ride control.

1шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

See Figure 8-10 for lift tubes used on models with ride control.

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Not Illustrated

2шт.
