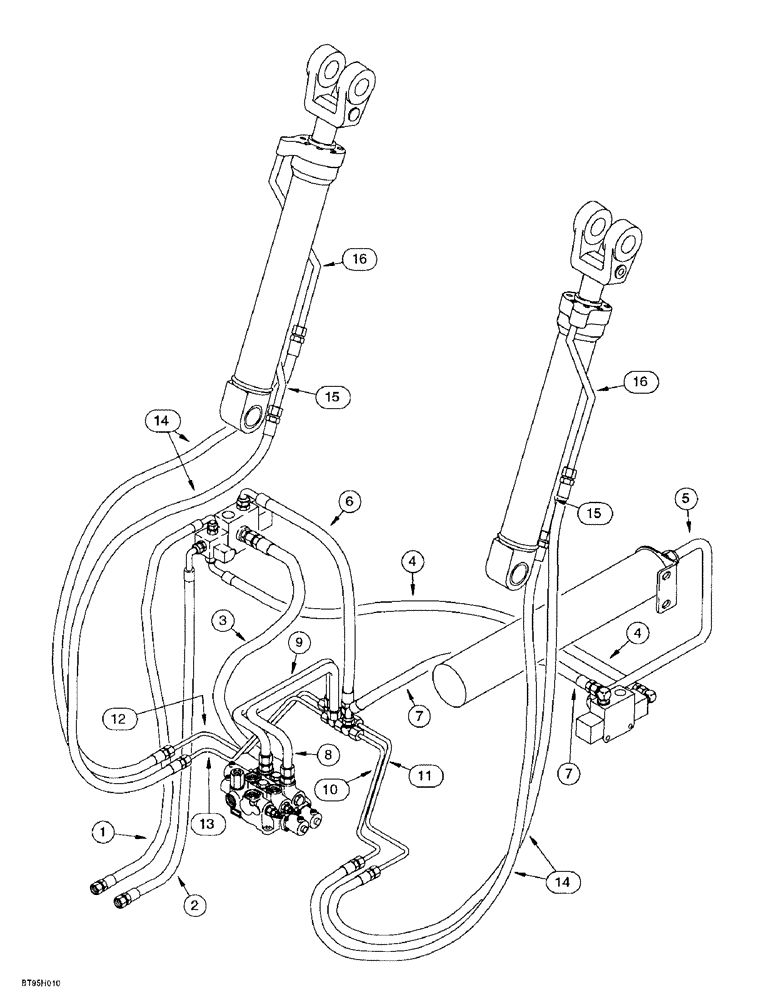

Запчасти Case 621B (1-34) - PICTORIAL INDEX, RIDE CONTROL HYDRAULIC CIRCUIT, Z-BAR OR XT LOADERS (00) - PICTORIAL INDEX

1

Hose, master directional valve to pilot controller and pressure reducing sequence valve - Figure 8-95

1шт.

2

Hose, master directional valve to hydraulic controller return line - Figure 8-95

1шт.

3

Hose, master directional valve to loader control valve end cover - Figure 8-95

1шт.

4

Hose, master directional valve to directional valve - Figure 8-97

1шт.

5

Tube, directional valve to accumulator - Figure 8-97

1шт.

6

Hose, master directional valve to right-hand rod end cylinder tube - Figure 8-99

1шт.

7

Hose, directional valve to right-hand closed end cylinder tube - Figure 8-99

1шт.

8

Tube, at loader control valve to closed end of cylinders - Figure 8-11

1шт.

9

Tube, at loader control valve to rod end of cylinders - Figure 8-11

1шт.

10

Tube, at tee to hose to right-hand lift cylinder closed end - Figure 8-11

1шт.

11

Tube, at tee to hose to right-hand lift cylinder rod end - Figure 8-11

1шт.

12

Tube, at tee to hose to left-hand lift cylinder rod end - Figure 8-11

1шт.

13

Tube, at tee to hose to left-hand lift cylinder closed end - Figure 8-11

1шт.

14

Hose, tubes to cylinder tubes - Figure 8-11

1шт.

15

Tube, hose to cylinder closed end - Figure 8-11

1шт.

16

Tube, hose to cylinder rod end - Figure 8-11

1шт.
