(2-14) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. JEE0053200

Запчасти Case 721B (2-14) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. JEE0053200 (02) - ENGINE

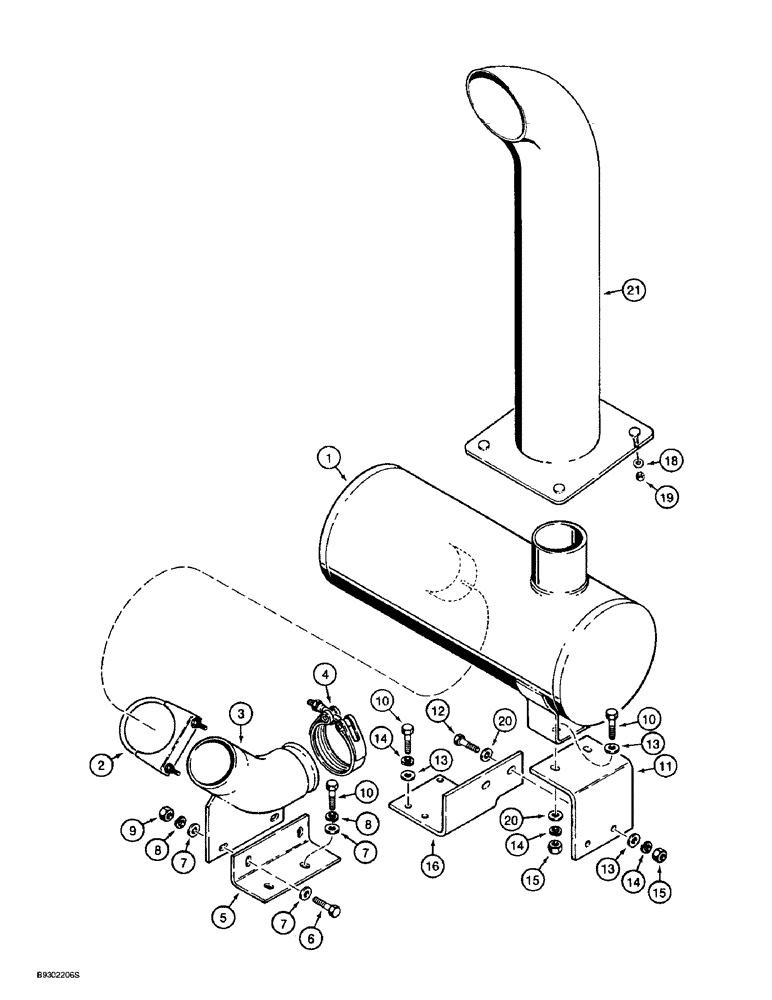

Схема запчастей Case 721B - (2-14) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. JEE0053200 (02) - ENGINE
2
10
7
10
11
20
10
21
4
9
14
14
13
5
14
15
8
15
12
8
13
7
13
7
18
3
20
6
16
19
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A189406

MUFFLER

- exhaust

1шт.

2

A162896

CLAMP

- muffler, includes hardware, muffler to turbocharger elbow

1шт.

3

A184986

ELBOW

- turbocharger exhaust

1шт.

4

A170807

CLAMP,102mm ID

retaining, special

1шт.

5

A189061

SUPPORT

BRACKET - turbocharger elbow

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

7

D41740

WASHER

- flat, special, 3/8 inch

6шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

825-1410

NUT,M10, Cl 8

2шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

11

A189408

SUPPORT

BRACKET - muffler, upper

1шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

14

892-11010

LOCK WASHER,M10

8шт.

15

825-1410

NUT,M10, Cl 8

4шт.

16

A189011

SUPPORT

BRACKET - muffler, lower

1шт.

18

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

20

D41740

WASHER

- flat, special, 3/8 inch

4шт.

21

L127576

TUBE

PIPE - curved, exhaust

1шт.
