(2-15A) - MUFFLER AND EXHAUST SYSTEM, P.I.N. JEE0053200 AND AFTER

Запчасти Case 721B (2-15A) - MUFFLER AND EXHAUST SYSTEM, P.I.N. JEE0053200 AND AFTER (02) - ENGINE

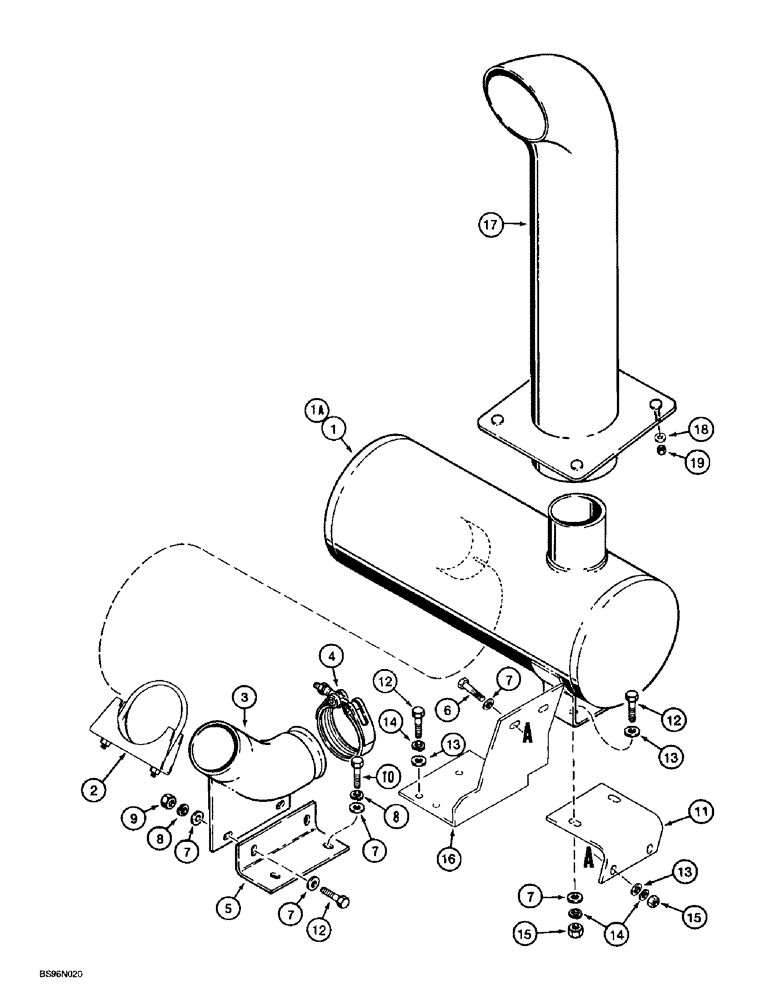

Схема запчастей Case 721B - (2-15A) - MUFFLER AND EXHAUST SYSTEM, P.I.N. JEE0053200 AND AFTER (02) - ENGINE
11
5
19
18
12
3
15
7
7
13
13
17
12
7
1a
13
12
16
15
7
6
7
14
1
14
9
8
4
10
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

197296A1

MUFFLER

- exhaust, standard

1шт.

1a

197297A1

MUFFLER

- exhaust, spark arrestor

1шт.

2

A162896

CLAMP

- muffler, includes hardware

1шт.

3

197299A1

ELBOW

- turbocharger exhaust

1шт.

4

A170807

CLAMP,102mm ID

retaining, special

1шт.

5

197302A1

SUPPORT

BRACKET - turbocharger elbow

1шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

2шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

11

197300A1

HOLDER

BRACKET - muffler, upper

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

14

892-11010

LOCK WASHER,M10

8шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

197301A1

HOLDER

BRACKET - muffler, lower

1шт.

17

L127961

WHISTLE

PIPE - exhaust, curved, muffler

1шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.
