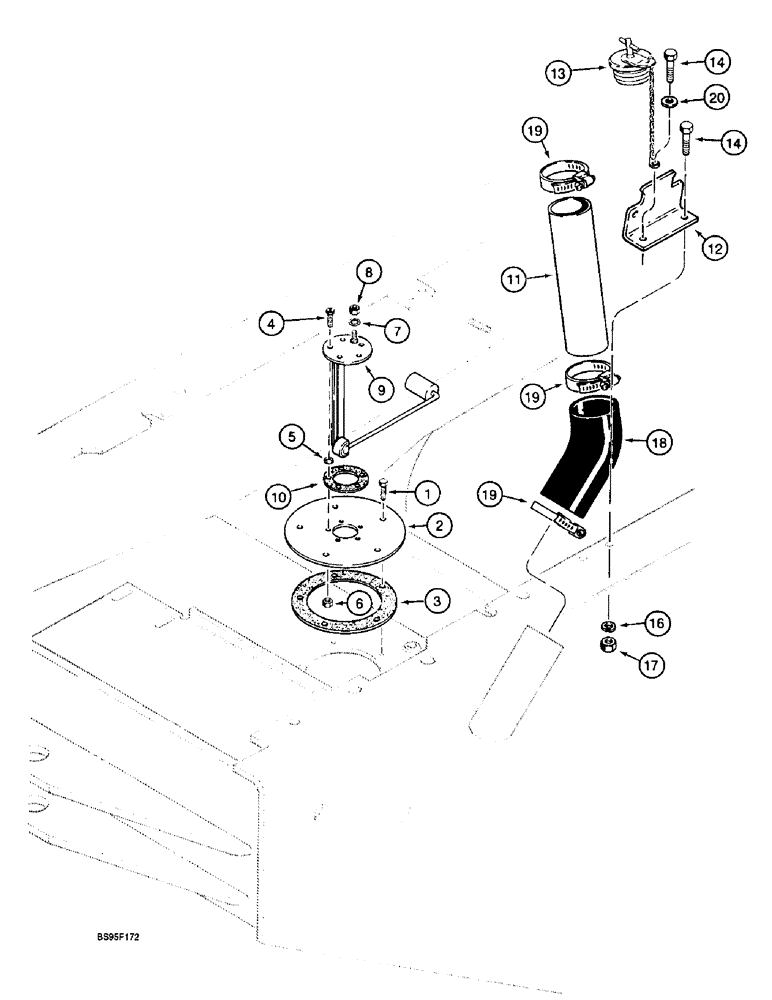

Запчасти Case 721B (3-06) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

L108414

BOLT

- hex, special

5шт.

2

L77441

PLATE

- tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- plate

1шт.

4

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

5шт.

5

L115306

WASHER

- special, sealing

5шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

7

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

8

225-10210

NUT,#10-32

1шт.

9

L124069

PROBE

SENDER - fuel tank, Includes: Ref. 10

1шт.

10

528309R4

GASKET - fuel level sender, replaces 104812C3

1шт.

11

L128103

PIPE

- filler, fuel

1шт.

12

L128402

SUPPORT

BRACKET - mounting, fuel filler pipe

1шт.

13

L74929

FILLER CAP

CAP, FILLER

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

L127180

FUEL HOSE

HOSE - elbow

1шт.

19

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

3шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Installed between Ref. 13 and 14

1шт.
