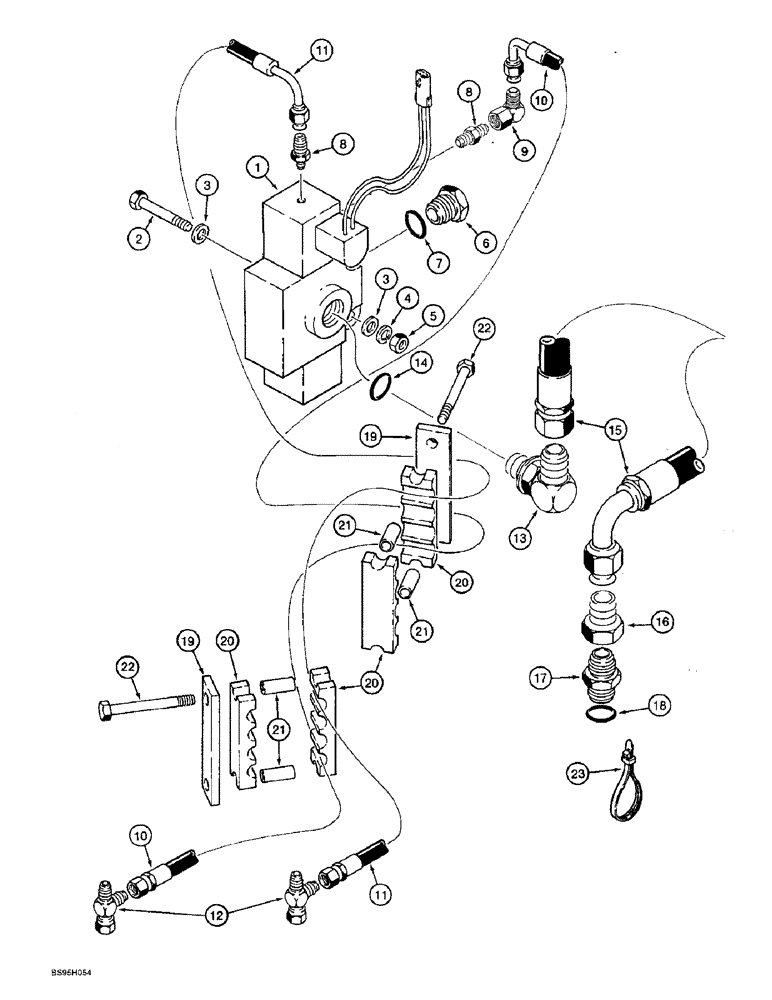

Запчасти Case 821B (8-84) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER VALVE TO CAB AND RETURN MANIFOLD (08) - HYDRAULICS

1

107866A1

VALVE

ASSEMBLY - master directional, with electrical connector, parts list page 8-101

1шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

10

131675A1

HOSE ASSY.

HOSE - 2350 mm (92-1/2 inch) long, to pilot controller and pressure reducing sequence valve

1шт.

11

131674A1

HOSE ASSY.

HOSE - 2785 mm (109-5/8 inch) long, to hydraulic controller return line

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

131225A1

HOSE ASSY.

HOSE - 750 mm (29-1/2 inch) long, master valve to loader control valve end cover, see pages 8-31 - 8-35 for end cover

1шт.

16

218-727

REDUCER,37 Degree, 1 5/8"-12, Fem x 1 1/16"-12 Male

ADAPTER - reducing, 1-5/8-12 female straight thread x 1-1/16-12 inch flare

1шт.

17

218-5041

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-7/8-12 inch O-ring boss, includes: Ref. 18

1шт.

18

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

19

L124270

LARGE PLATE

PLATE - mounting, ride control hydraulic hoses

2шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

20

L124271

FIXING BRACKET

CLAMP - rubber

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

21

L126936

SPACER

- 34 mm long

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

22

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

- hex, 3/8 NC x 5 inch, grade 8

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.
