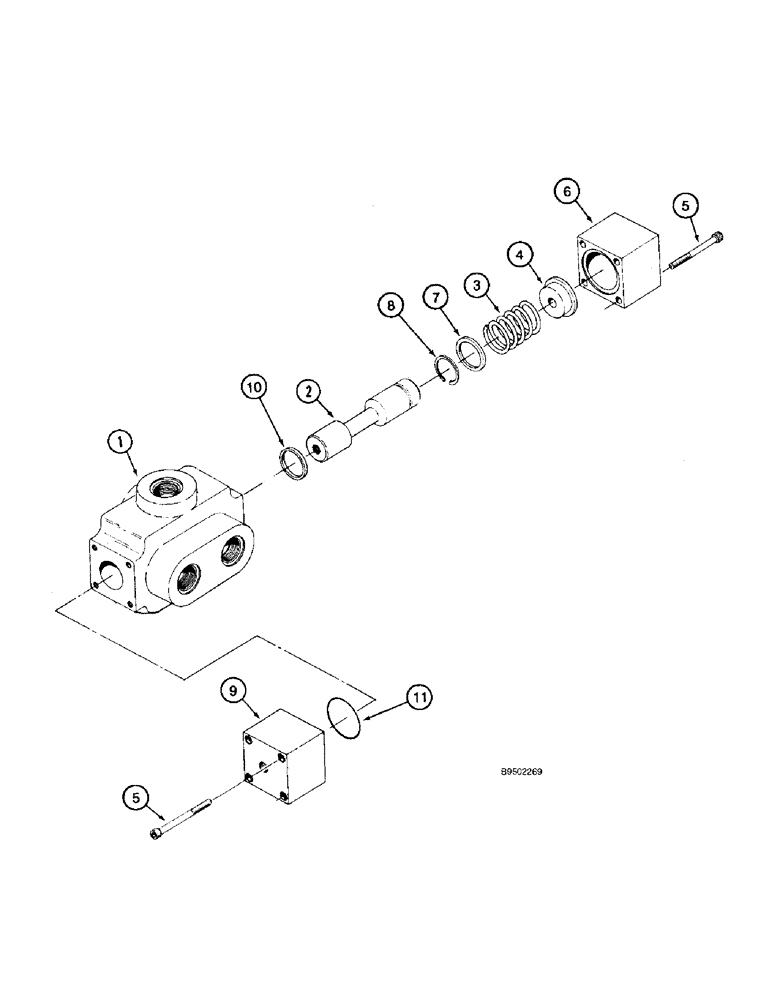

Запчасти Case 821B (8-92) - RIDE CONTROL DIRECTIONAL VALVE ASSEMBLY (08) - HYDRAULICS

106488A1

VALVE

ASSEMBLY - directional control, ride control, includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order 106488A1 valve assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, order 106488A1 valve assembly

1шт.

3

33-1165T1

COMPRESSION SPRING

SPRING - compression

1шт.

4

33-1171T1

SPACER

- spring

1шт.

5

33-1168T1

HEX SOC SCREW

SCREW - hex socket, special, 1/4 NC x 2 inch, grade 8

8шт.

6

33-1170T1

CAP

End

1шт.

7

33-1164T1

WASHER

- spool

1шт.

8

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

1шт.

9

123253A1

VALVE BODY

CAP - end pilot

1шт.

123254A1

SEAL KIT

KIT - seal, valve, includes dust seal not used in this application, includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - quad, order 123254A1 kit

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve, order 123254A1 kit

1шт.
