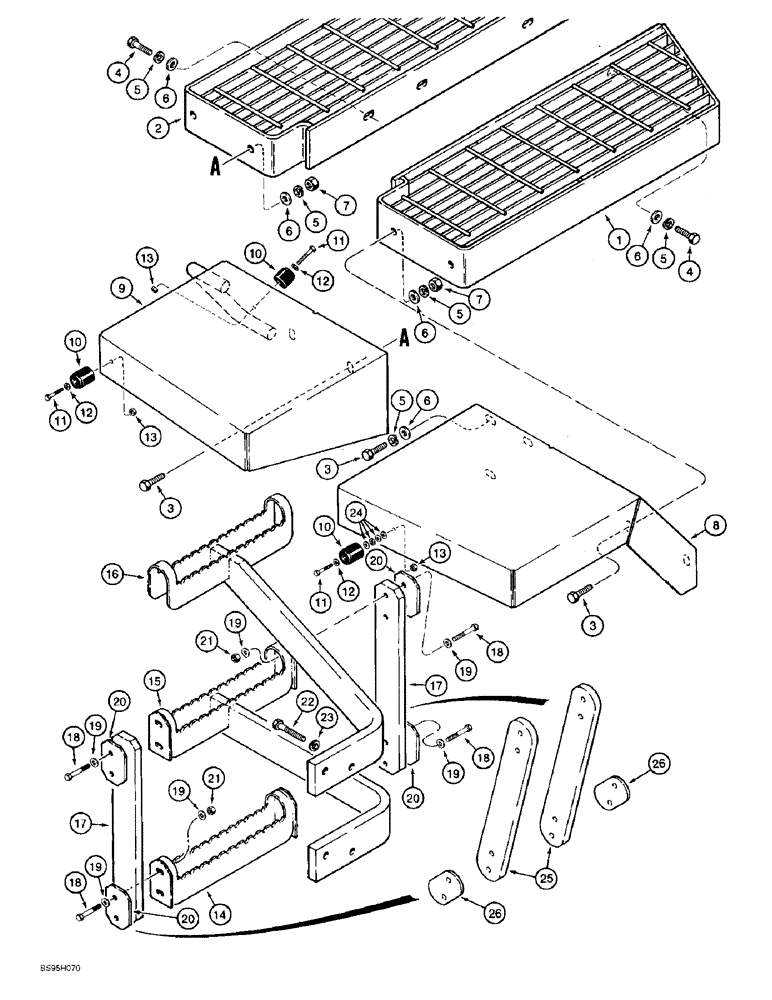

Запчасти Case 821B (9-038) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L126892

GRATING

STEP - platform, right-hand, operators compartment

1шт.

2

L126950

STEP

- platform, left-hand, operators compartment

1шт.

3

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

10шт.

4

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

16шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

L125272

FENDER

- rear, right-hand

1шт.

9

L125273

FENDER

- rear, left-hand

1шт.

10

L126483

BUMPER

- rubber

3шт.

11

426-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 8

- hex, 1/4 NC x 1-3/4 inch, grade 8

3шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

13

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

3шт.

14

135822A1

STEP

- lower, rear frame replaces L128543 step

1шт.

15

L128544

STEP

- center, rear frame

1шт.

16

L126167

STEP

- top, rear frame

1шт.

17

L126918

SUPPORT

STRAP - step hanger, no longer available, order Ref. 25, 108751A1 strap

2шт.

18

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

8шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

16шт.

20

L119133

LARGE PLATE

PLATE - support, attaches on outside of step hangers at middle and lower steps, no longer available, order Ref. 26, 108753A1 plate

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

8шт.

22

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

495-81104

WASHER,.266" x 1 1/4" x .069"

- flat, 17/64 x 1-1/4 x 1/16 inch, if used

4шт.

25

108751A1

SUPPORT

STRAP - step hanger

4шт.

26

108753A1

LARGE PLATE

PLATE - support, attaches on outside of step hangers at middle and lower steps

4шт.
