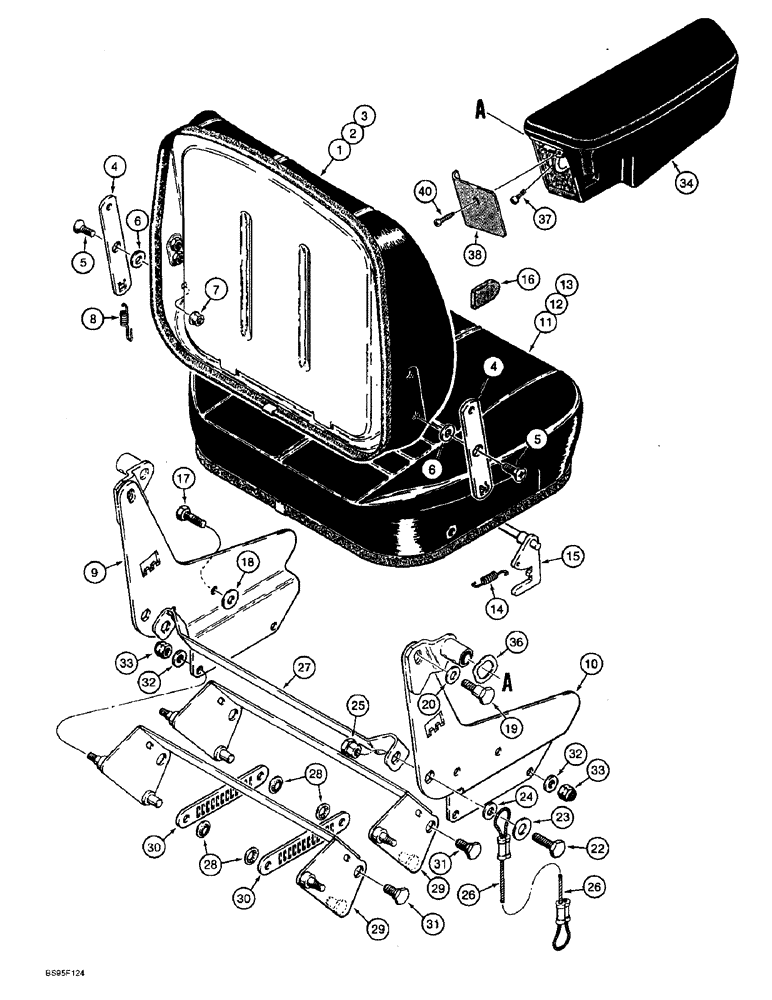

Запчасти Case 821B (9-053A) - SUSPENSION SEATS - GRAY (09) - CHASSIS/ATTACHMENTS

177639A1

SEAT

ASSEMBLY - suspension, vinyl, cab or canopy models includes parts on page 9-53D - Fig. 9-53G, includes: Ref. 1 - 27

1шт.

177638A1

SEAT

ASSEMBLY - suspension, cloth, cab models, includes parts on page 9-53D - Fig. 9-53G, includes: Ref. 1 - 27

1шт.

185369A1

KIT

CUSHION ASSEMBLY - backrest, vinyl, 177639A1 seat assembly, includes: Ref. 1 - 3

1шт.

185367A1

KIT

CUSHION ASSEMBLY - backrest, cloth, 177638A1 seat assembly, includes: Ref. 1 - 3

1шт.

185369A1 is grey vinyl insert with grey vinyl side panels.

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back, includes pad, pan, and cover

1шт.

2

N9034

SEAT

TRIM - retaining, cushion

1шт.

3

N6674

CLIP

- trim

1шт.

4

N8679

LINK

- seat back

2шт.

5

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

231-5306

FLANGE NUT,Flg, 3/8"-16

NUT, LOCK, Flg, 3/8"-16

2шт.

8

N8680

SPRING

- seat back link

2шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - seat, left-hand

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - seat, right-hand

1шт.

185368A1

KIT

CUSHION ASSEMBLY - seat, vinyl, 177639A1 seat assembly, includes: Ref. 11 - 13

1шт.

185366A1

CUSHION

ASSEMBLY - seat, cloth, 177638A1 seat assembly, includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CUSHION - seat bottom, includes pad, pan, and cover

1шт.

12

N9034

SEAT

TRIM - retaining, cushion

1шт.

13

N6674

CLIP

- trim

1шт.

14

D82815

SPRING

- tilt shaft

2шт.

15

D82868

SHAFT

- seat tilt

1шт.

130921A1

KNOB

KIT - knob, also includes Refs. 30 - 32 in Fig. 9-53E, includes: Ref. 16

1шт.

16

130921A1

KNOB

KIT - knob, replaces A47347 cap

1шт.

17

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

2шт.

18

A45110

WASHER

- special

2шт.

19

N14251

BOLT

- special, 3/8 NC x 1-21/32 inch, back tilt

2шт.

20

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, Not shown

4шт.

188247A1

KIT

- tether cable, also includes Refs. 24 - 28 in Fig. 9-53G, includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

23

NSS

NOT SOLD SEPARAT

WASHER - flat, large

4шт.

24

NSS

NOT SOLD SEPARAT

WASHER - flat, small

2шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex, special

2шт.

26

NSS

NOT SOLD SEPARAT

CABLE - side brackets

2шт.

27

D82871

BAR

- spacer

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support

1шт.

188250A1

LINK ASSY.

KIT - cross link, includes: Ref. 28 - 30

2шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-53A, 9-53E, and 9-53G

1шт.

29

NSS

NOT SOLD SEPARAT

BRACKET - tie

2шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-53A, 9-53E, and 9-53G

1шт.

30

NSS

NOT SOLD SEPARAT

LEVER - adjusting

2шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-53A, 9-53E, and 9-53G

1шт.

31

180627A1

LOCK BOLT,Shldr, Hex, 1/2" - 13 x 19mm

BOLT - shoulder, tie bracket retaining, replaces A45473 bolt

4шт.

Part of KIT, P/N 1977722C1 and also includes Refs. in Figs. 9-53A, 9-53E, and 9-53G

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

33

231-5346

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, selt-locking, 3/8 inch NC

4шт.

A45489

ARMREST

KIT - right-hand armrest, includes: Refs. 34, 36, 37, 38, and 40

1шт.

A45488

ARMREST

KIT - left-hand armrest, includes Refs. 35, 36, 37, 39, and 40

1шт.

34

NSS

NOT SOLD SEPARAT

ARMREST - seat, right-hand

1шт.

35

NSS

NOT SOLD SEPARAT

ARMREST - seat, left-hand, not shown

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - wave, 1-1/8 inch ID

2шт.

37

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

1шт.

38

NSS

NOT SOLD SEPARAT

PLATE - cover, right-hand armrest

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - cover, left-hand armrest, not shown

1шт.

40

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan slotted, no. 10-16 x 5/8 inch

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, includes Refs. 28 - 31

1шт.

Ref--185367a1 and 185369a1---descriptions are reversed per inf drawing 3897.

1шт.
