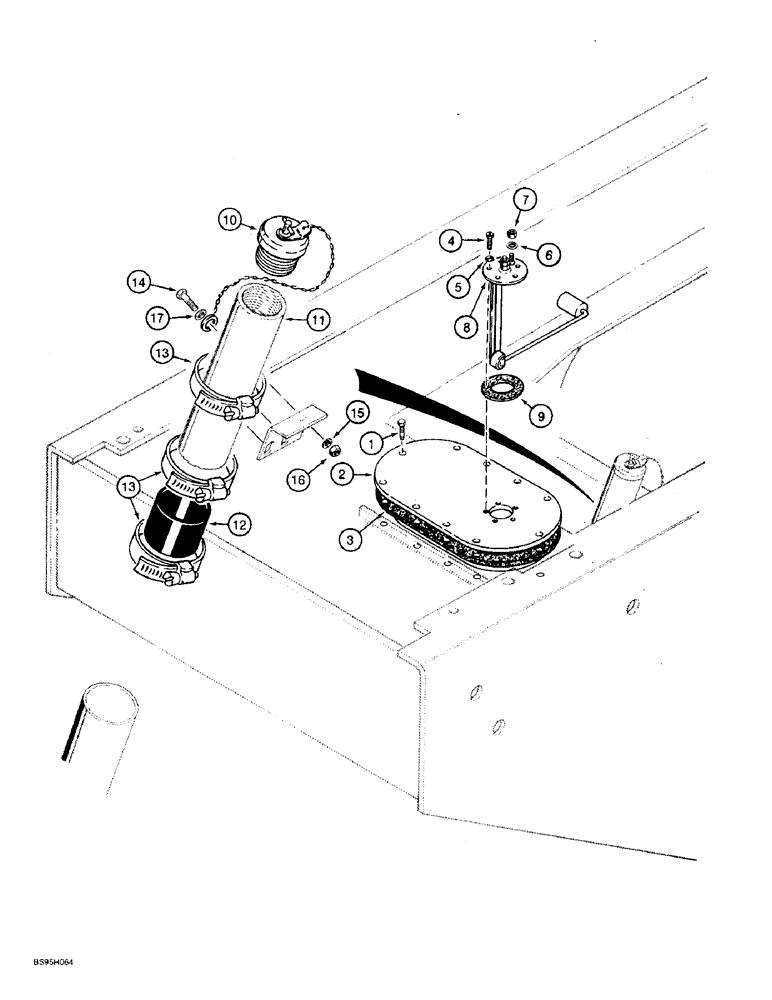

Запчасти Case 821B (3-06) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

L108414

BOLT

- hex, special, self sealing

10шт.

2

L125423

LARGE PLATE

PLATE - tank access cover

1шт.

3

100734A1

GASKET,4.6mm Thk

INJECTOR ASSEMBLY - fuel, parts list Fig. 3-13A

1шт.

4

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

5шт.

5

L115306

WASHER

- special

5шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

7

225-14210

NUT,#10-32

1шт.

8

L125363

PROBE

SENDER - fuel tank, includes: Ref. 9

1шт.

9

104812C3

GASKET,3.05mm Thk

- fuel level sender

1шт.

10

L74929

FILLER CAP

CAP, FILLER

1шт.

11

L127533

PIPE

- filler, fuel inlet

1шт.

12

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2

1шт.

13

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

3шт.

14

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.
