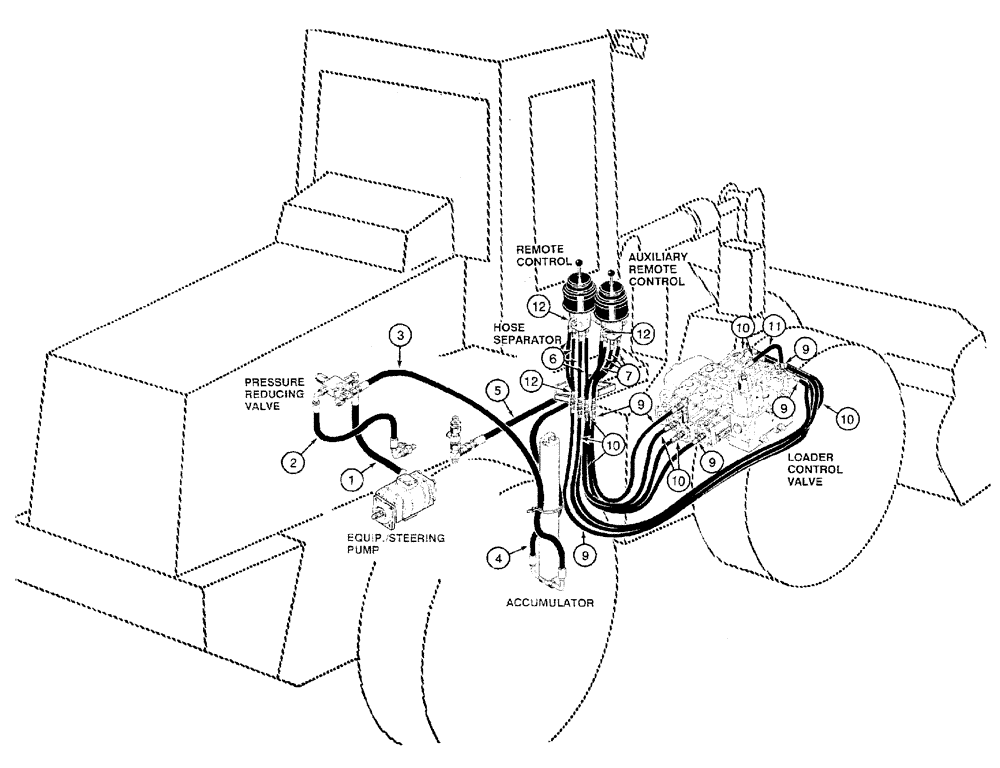

Запчасти Case 921B (1-022) - PICTORIAL INDEX - FOUR SPOOL CONTROL VALVE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, hydraulic equipment pump to pressure reducing valve, page 8-59

1шт.

2

Hose, pressure reducing valve to cooler bypass valve, page 8-59

1шт.

3

Hose, pressure reducing valve to accumulator, page 8-59

1шт.

4

Hose, accumulator to cab, page 8-61

1шт.

5

Hose, cab to hydraulic reservoir, page 8-61

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, page 8-55

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A, 3B, 4A, and 4B, page 8-55

1шт.

8

Hose, auxiliary remote control to remote control, page 8-55

1шт.

9

Hose, hose separator to ports 1A, 1B, 2A, and 2B, page 8-57

1шт.

10

Hose, hose separator to ports 3A, 3B, 4A, and 4B, page 8-57

1шт.

11

Hose, inlet and outlet section to tee at port 1A, page 8-57

1шт.

12

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, page 8-55

1шт.
