(07-034) - PUMP ASSEMBLY BRAKE

Запчасти Case 621C (07-034) - PUMP ASSEMBLY BRAKE (07) - BRAKES

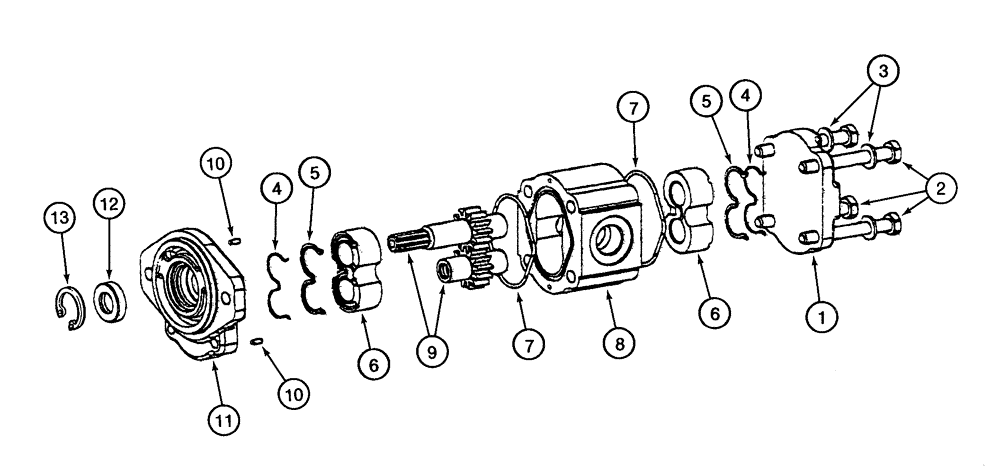

Схема запчастей Case 621C - (07-034) - PUMP ASSEMBLY BRAKE (07) - BRAKES
5
4
3
11
13
7
8
6
2
10
4
5
6
7
9
1
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

317020A1

PUMP, HYDRAULIC

brake, Consists of: Refs. 1-13, component parts not serviced separately, Order: P/N 258247A1

1шт.

87453067R

REMAN-HYD PUMP

621C (1/99-), Reman for New P/N 317020A1

1шт.

87453067C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER port end

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT

4шт.

3

NSS

NOT SOLD SEPARAT

WASHER

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT gear, set

1шт.

10

NSS

NOT SOLD SEPARAT

PIN dowel

2шт.

11

NSS

NOT SOLD SEPARAT

COVER shaft end

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

13

800-2135

SNAP RING,M35, Int

1шт.

258247A1

SEAL KIT

Repair, Includes:, Refs. 4, 5, 7, and 12

1шт.
