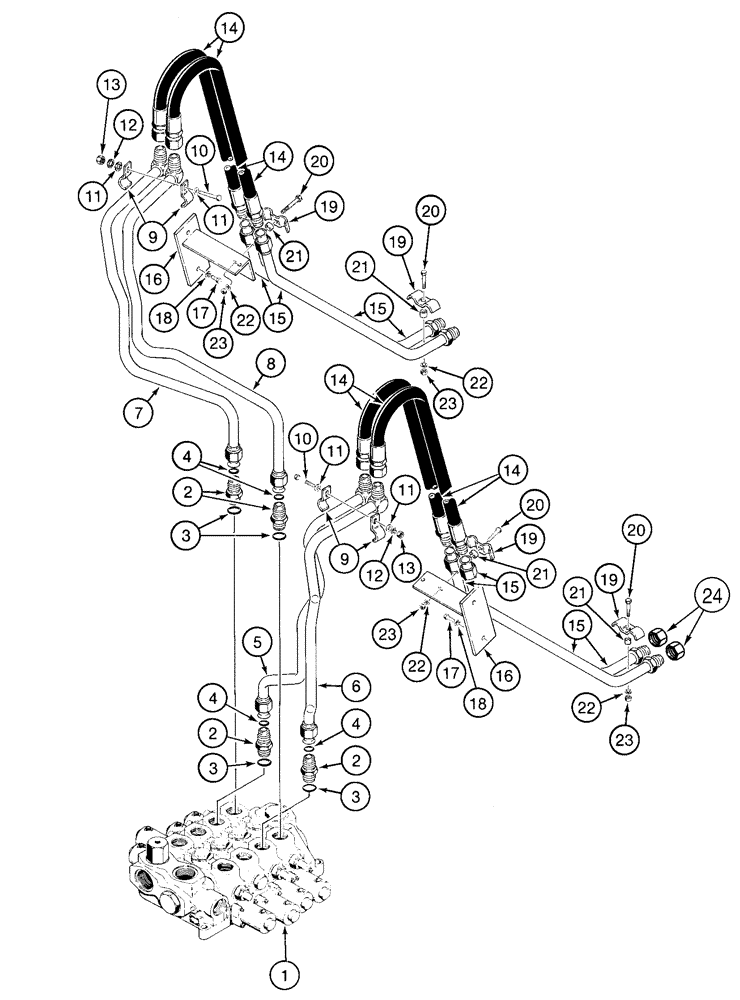

Запчасти Case 621C (08-048) - HYDRAULICS - AUX. BUCKET COUPLINGS, FOUR SPOOL VALVE TO AUX. BUCKET COUPLINGS, XT LOADER, N.A. ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader control, See figure 8-17

1шт.

2

L124291

FITTING

ADAPTER, Includes: Refs. 3 and 4

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

5

L126182

TUBE,25.4 mm OD

left hand, third spool to right hand hoses

1шт.

6

L126180

TUBE,25.4 mm OD x 802, 248 mm L

right hand, third spool to right hand hoses

1шт.

7

118741A1

TUBE,25.4 mm OD, 752, 369 mm Length

left hand, fourth spool to left hand hoses

1шт.

8

118743A1

TUBE

right hand, fourth spool to left hand hoses

1шт.

9

L32065

CLAMP

4шт.

10

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

43-3/8 in, (1100 mm)

4шт.

15

346333A1

TUBE,25.4 mm OD, 683, 422 mm Length

at loader lift frame

4шт.

16

346304A1

SUPPORT

BRACKET

2шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

R15257

CLAMP

4шт.

20

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

21

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

2шт.
