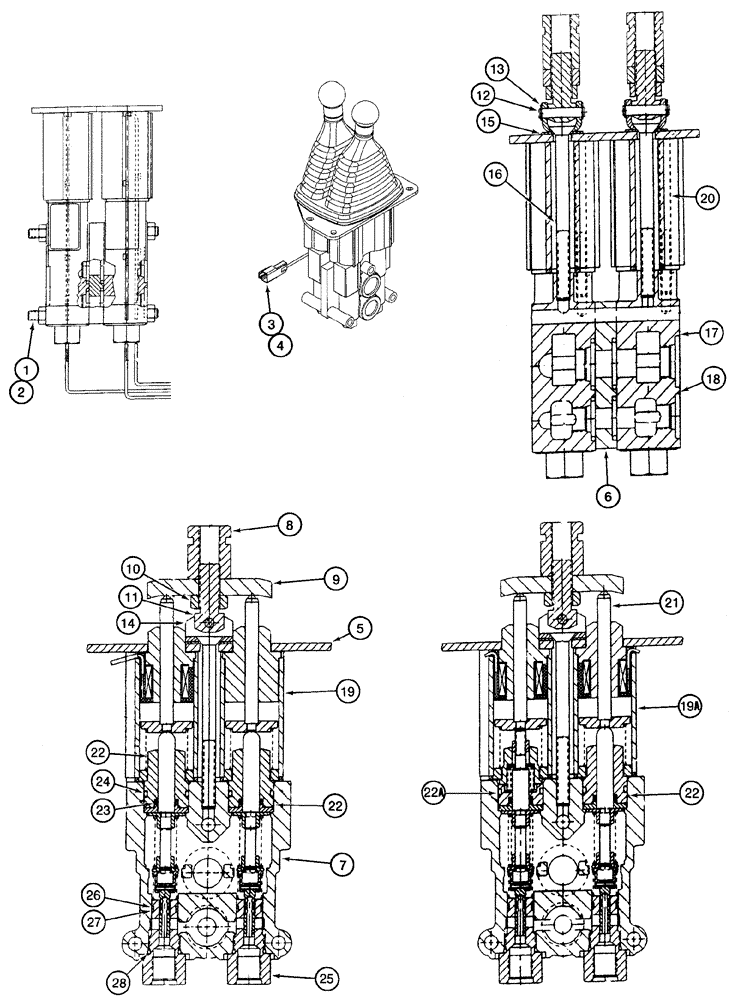

Запчасти Case 621C (08-050) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

291946A1

VALVE

remote control, two spool, Consists of: Refs. 1-28

1шт.

1

322399A1

ROD

tie

3шт.

2

329-105

NUT,5/16"-18, G8

6шт.

3

323777A1

CONNECTOR, ELEC

CONNECTOR

1шт.

4

323776A1

WEDGE

1шт.

5

324112A1

PIVOT PLATE

1шт.

6

324111A1

VALVE BLOCK

SPACER

1шт.

316631A1

SET OF PARTS

KIT bucket section, ports A and C, Consists of: Refs. 7-28

1шт.

316633A1

SET OF PARTS

KIT lift section, ports B and D, Consists of: Refs. 7-28

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

324107A1

SPECIAL NUT

1шт.

9

324106A1

PIVOT PLATE

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

324103A1

BOLT

special

1шт.

12

324108A1

PIVOT PIN

pivot

1шт.

13

100-3321

SNAP RING,#X21, .185" Dia, E-Type

2шт.

14

324104A1

SUPPORT

BRACKET

1шт.

15

324109A1

SHIM

1шт.

16

324105A1

HEX SOC SCREW

1шт.

17

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

18

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

19

324098A1

MAGNET

ASSY., P/N 316631A1 bucket section, component parts not serviced separately

1шт.

19a

324099A1

MAGNET

ASSY., P/N 316633A1 lift section, component parts not serviced separately

1шт.

20

324110A1

SCREW

2шт.

21

324102A1

PLUNGER

ASSY., component parts not serviced separately

2шт.

22

323768A1

PLUNGER

(2) 316631A1, (1) 316633A1, two used in 316631A1 bucket dump and rollback section, one used in 316633A1 lift raise section, cartridge, component parts NSS, for service of external o-ring & spool seal, Order: P/N323915A1 Kit, Includes: P/N 323915A1, 23, 24

1шт.

22a

323769A1

PLUNGER

(1) 316633A1, one used in P/N 316633A1 lift float section, cartridge, component parts not serviced separately, for service of external o-ring and spool seal, Order P/N 323915A1 Kit, Includes: P/N 323915A1, 23, 24

1шт.

323915A1

SET OF PARTS

KIT seal, Includes: Refs. 23 and 24

1шт.

23

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

spool

1шт.

24

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

25

323766A1

VALVE

Cartridge, component parts not serviced separately, for service of external seals, Order: P/N 323913A1 Kit, Includes: P/N 323913A1, 26-28

2шт.

323913A1

SEAL KIT

KIT seal, Includes: Refs. 26-28

1шт.

26

323921A1

RING

backup

1шт.

27

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

28

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.
