(08-062) - VALVE ASSY - RIDE CONTROL, MASTER DIRECTIONAL, ALL N.A. LOADERS, EUR. Z-BAR LOADERS ONLY

Запчасти Case 621C (08-062) - VALVE ASSY - RIDE CONTROL, MASTER DIRECTIONAL, ALL N.A. LOADERS, EUR. Z-BAR LOADERS ONLY (08) - HYDRAULICS

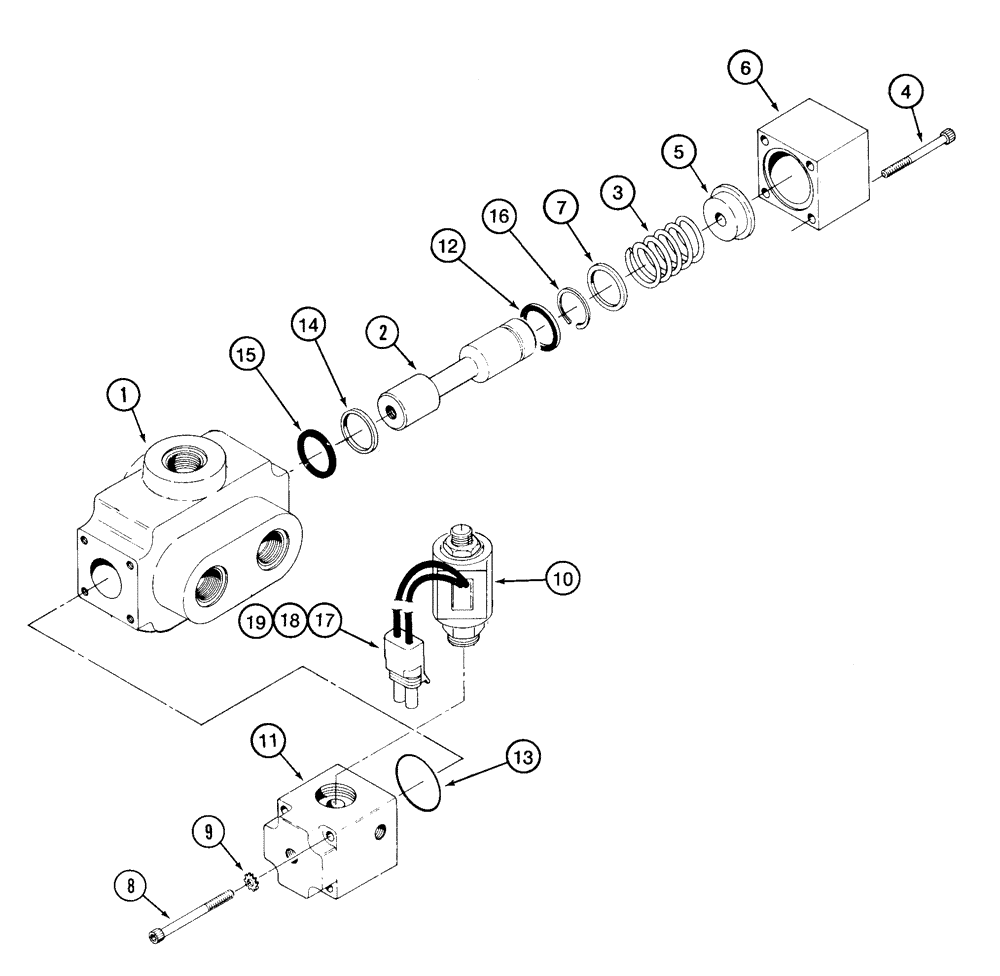

Схема запчастей Case 621C - (08-062) - VALVE ASSY - RIDE CONTROL, MASTER DIRECTIONAL, ALL N.A. LOADERS, EUR. Z-BAR LOADERS ONLY (08) - HYDRAULICS
8
18
19
7
15
11
9
5
17
10
13
3
4
12
6
2
16
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

107866A1

VALVE

control, master directional, with electrical connector, Consists of: Refs. 1-19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order: P/N 107866A1

1шт.

2

NSS

NOT SOLD SEPARAT

spool, Order: P/N 107866A1

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1168T1

HEX SOC SCREW

1/4 x 2

4шт.

5

33-1171T1

SPACER

1шт.

6

33-1170T1

CAP

1шт.

7

33-1164T1

WASHER

1шт.

8

33-1167T1

HEX SOC SCREW

1/4 x 2-1/2 in

4шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

10

122965A1

SOLENOID

24V

1шт.

11

122971A1

VALVE BODY

HOUSING

1шт.

12

R24866

RING

1шт.

13

189344A1

O-RING

1шт.

14

189345A1

SEAL

1шт.

15

189346A1

O-RING

1шт.

16

103-13100

SNAP RING,#100, Ext, Crescent

Replaces P/N D23692

1шт.

17

195842A1

SEAL

not illustrated

2шт.

18

190256A1

TERMINAL CONNECTOR

not illustrated

2шт.

19

190258A1

BODY

not illustrated

1шт.
