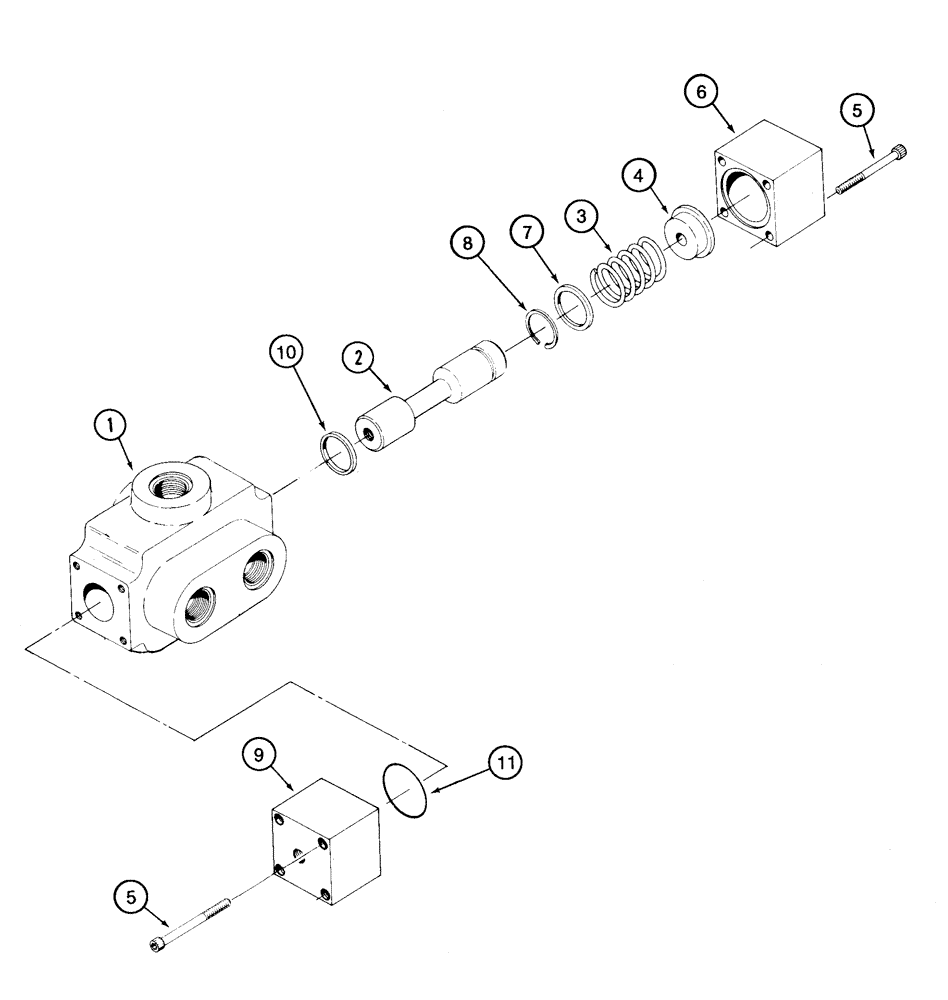

Запчасти Case 621C (08-063) - VALVE ASSY - RIDE CONTROL DIRECTIONAL, ALL NORTH AMERICAN LOADERS, EUROPEAN Z-BAR LOADERS ONLY (08) - HYDRAULICS

106488A1

VALVE

directional control, ride control, Consists of: Refs. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order: P/N 106488A1

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Order: P/N 106488A1

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1171T1

SPACER

1шт.

5

33-1168T1

HEX SOC SCREW

1/4 x 2

8шт.

6

33-1170T1

CAP

1шт.

7

33-1164T1

WASHER

1шт.

8

103-13100

SNAP RING,#100, Ext, Crescent

Replaces P/N D23692

1шт.

9

123253A1

VALVE BODY

CAP

1шт.

123254A1

SEAL KIT

Includes: Refs.10 and 11, Includes dust seal not used in this application

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, Order: P/N 123254A1

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING, Order: P/N 123254A1

1шт.
