(08-065A) - VALVE, UNLOADING

Запчасти Case 621C (08-065A) - VALVE, UNLOADING (08) - HYDRAULICS

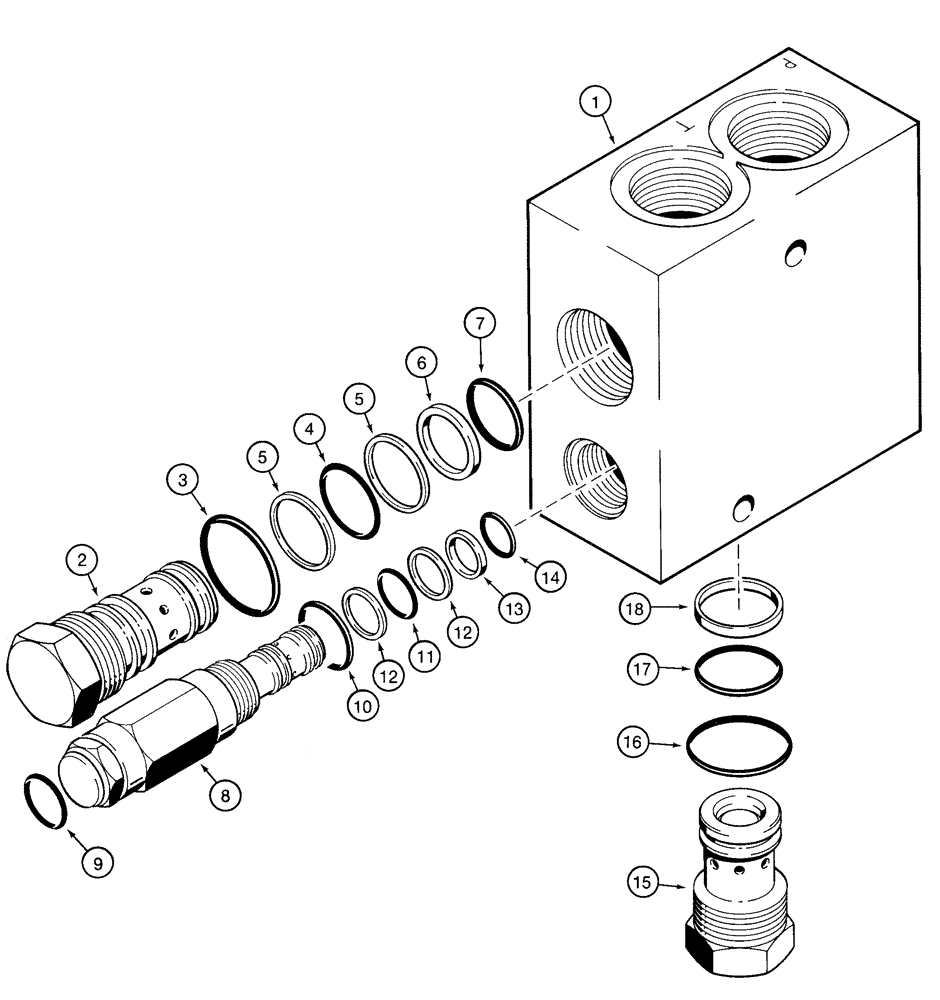

Схема запчастей Case 621C - (08-065A) - VALVE, UNLOADING (08) - HYDRAULICS
10
4
18
12
9
17
5
8
2
12
14
15
6
16
11
7
3
1
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

191917A2

VALVE

unloading, Consists of: Refs. 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

110901A1

VALVE

Consists of: Refs. 2-7, component parts not serviced separately

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

110902A1

SEAL KIT

Consists of: Refs. 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING large

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING medium

1шт.

5

NSS

NOT SOLD SEPARAT

RING backup

2шт.

6

NSS

NOT SOLD SEPARAT

RING backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING small

1шт.

110903A1

VALVE

Consists of: Refs. 8-14, component parts not serviced separately

1шт.

8

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

110904A1

SEAL KIT

Consists: of: Refs. 9-14

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING outer

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING large

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup

2шт.

13

NSS

NOT SOLD SEPARAT

RING backup

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING small

1шт.

122410A1

VALVE, CHECK

component parts not serviced separately, Consists of: Refs. 15-18

1шт.

15

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

124305A1

SEAL KIT

Consists of: Refs. 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring large

1шт.

17

NSS

NOT SOLD SEPARAT

RING backup

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING small

1шт.
