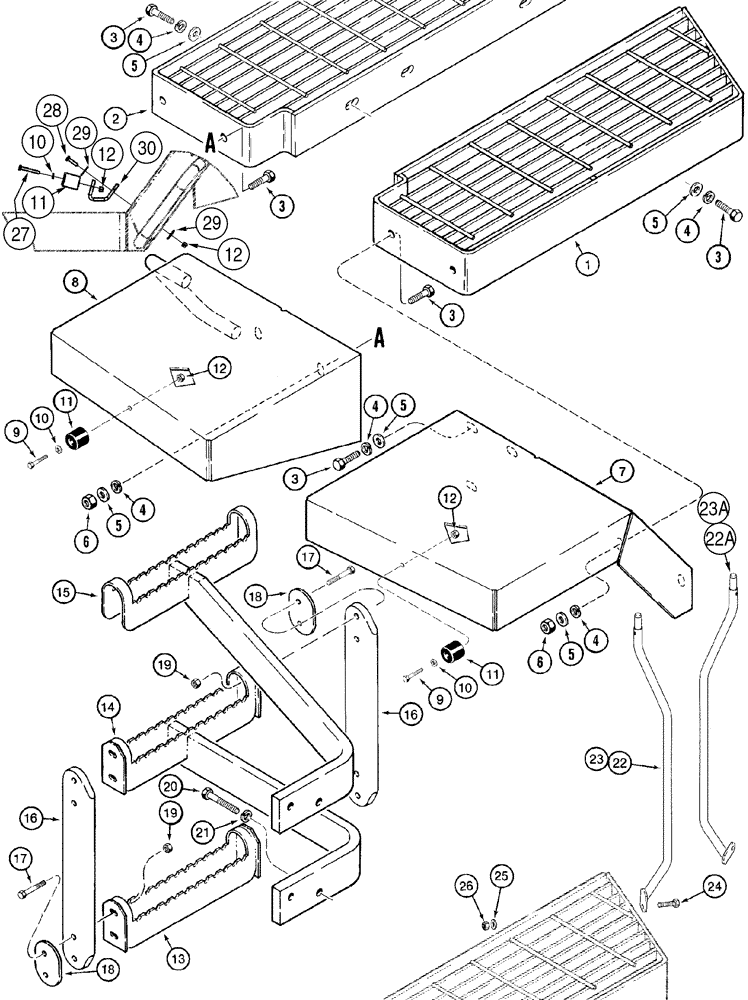

1
326819A2
STEP
operators compartment, right hand
1шт.
2
326818A2
STEP
operators compartment, left hand
1шт.
3
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
No longer used, Order P/N 627-12040
16шт.
3
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
Replaces P/N 827-12050
16шт.
4
892-11012
LOCK WASHER,M12
12шт.
5
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 x 4 mm
20шт.
6
829-1412
NUT,M12, Cl 10.9
No longer used, Order P/N 832-10412
4шт.
6
832-10412
NUT,M12 x 1.75, Cl 8
Replaces P/N 829-1412
4шт.
7
L128539
FENDER
rear, right hand
1шт.
8
L128541
FENDER
rear, left hand
1шт.
9
827-6040
BOLT,Hex, M6 x 40mm, Cl 10.9
2шт.
10
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
11
L126483
BUMPER
DOOR
3шт.
12
832-10406
NUT,M6 x 1, Cl 8
4шт.
13
311075A1
STEP
rear frame, lower
1шт.
14
313435A1
STEP
rear frame, center
1шт.
15
319794A1
STEP
rear frame, top
1шт.
16
108751A1
SUPPORT
HANGER
2шт.
17
827-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
8шт.
18
311069A1
LARGE PLATE
PLATE, LARGE SUPPORT
4шт.
19
832-10410
NUT,M10 x 1.5, Cl 8
8шт.
20
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
4шт.
21
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 x 4 mm
4шт.
22
296420A1
GRAB RAIL
assist, right hand, no longer used, Order: P/N 296420A2
1шт.
22a
296420A2
HANDLE
assist, right hand, Replaces: P/N 296420A1
1шт.
23
296418A1
GRAB RAIL
assist, left hand, no longer used, Order: P/N 296418A2
1шт.
23a
296418A2
HANDLE
assist, left hand, Replaces: P/N 296418A1
1шт.
24
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
2шт.
25
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 x 4 mm
2-4шт.
26
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
27
827-6045
BOLT,Hex, M6 x 45mm, Cl 10.9
1шт.
28
627-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd
1шт.
29
895-15006
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
2шт.
30
357241A1
SUPPORT
BRACKET door stop
1шт.
