(04-032) - HARNESS CANOPY ROOF, NORTH AMERICA ONLY

Запчасти Case 621C (04-032) - HARNESS CANOPY ROOF, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

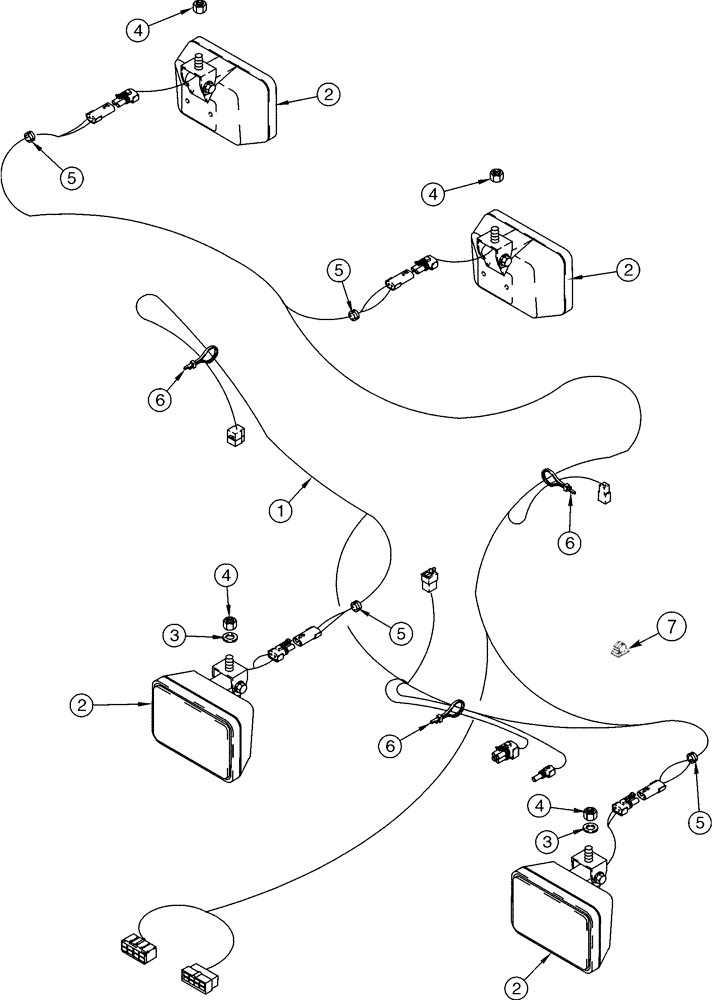

Схема запчастей Case 621C - (04-032) - HARNESS CANOPY ROOF, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS
2
6
3
2
4
7
5
4
5
3
6
5
4
2
1
4
3
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

238764A2

WIRE HARNESS

canopy roof, Replaces: P/N 238764A1

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See figure 4-85

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces P/N 896-15012

2шт.

4

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

5

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

4шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP TIE

1шт.

7

169850C2

CABLE CLIP

Adhesive Back

2шт.
