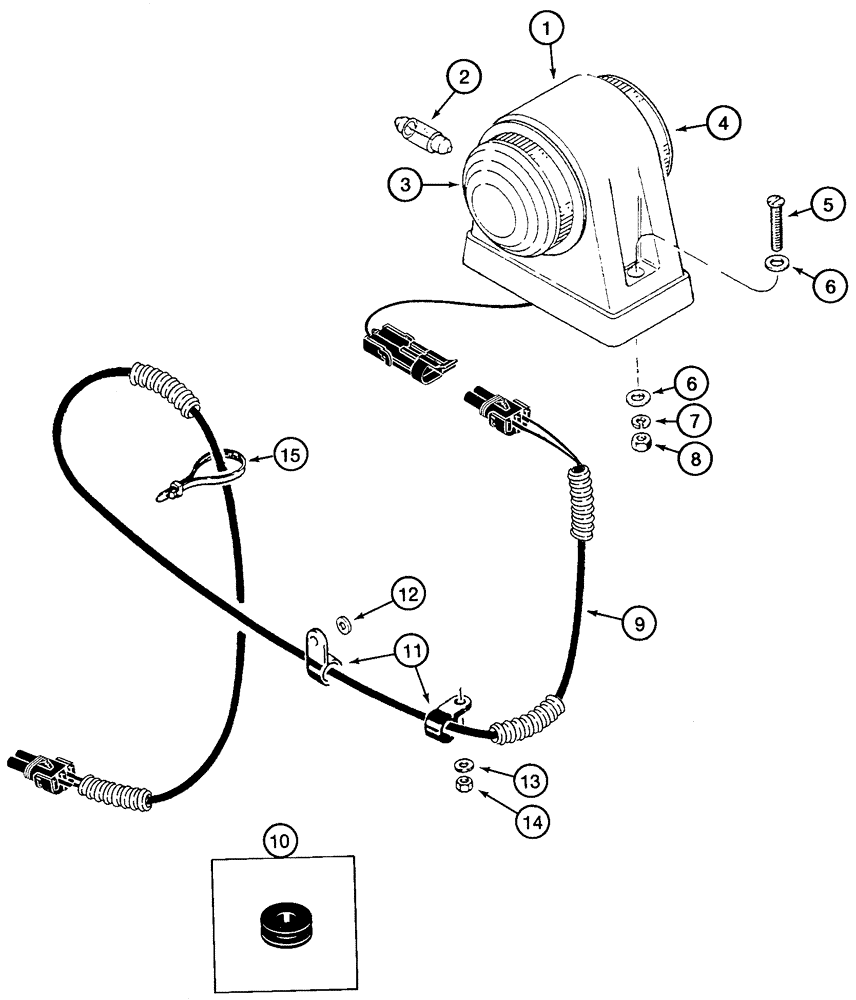

Запчасти Case 621C (04-070) - LAMPS CLEARANCE, FRONT AND REAR, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

E133249

LIGHT,24V, 12W, Clear/Red

LAMP ASSY., clearance, Consists of: Refs. 1 - 8

2-4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

E136074

BULB

24V 5W

1шт.

3

E131567

LENS

red

1шт.

4

E131568

LENS

clear

1шт.

5

FE276

SCREW

3/16 x 40 mm

2шт.

6

FE4001

WASHER

5.3 mm

4шт.

7

FE4201

LOCK WASHER

5 mm

2шт.

8

FE2000

NUT

3/16 in

2шт.

9

E133131

HARNESS

rear lamps, if used

2шт.

10

E133199

GROMMET

if used

2шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

If Used

4шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, If used

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

If Used

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, if used

1шт.
