(05-022) - HYDRAULICS - STEERING, RETURN LINE AND COOLER, NORTH AMERICA ONLY

Запчасти Case 621C (05-022) - HYDRAULICS - STEERING, RETURN LINE AND COOLER, NORTH AMERICA ONLY (05) - STEERING

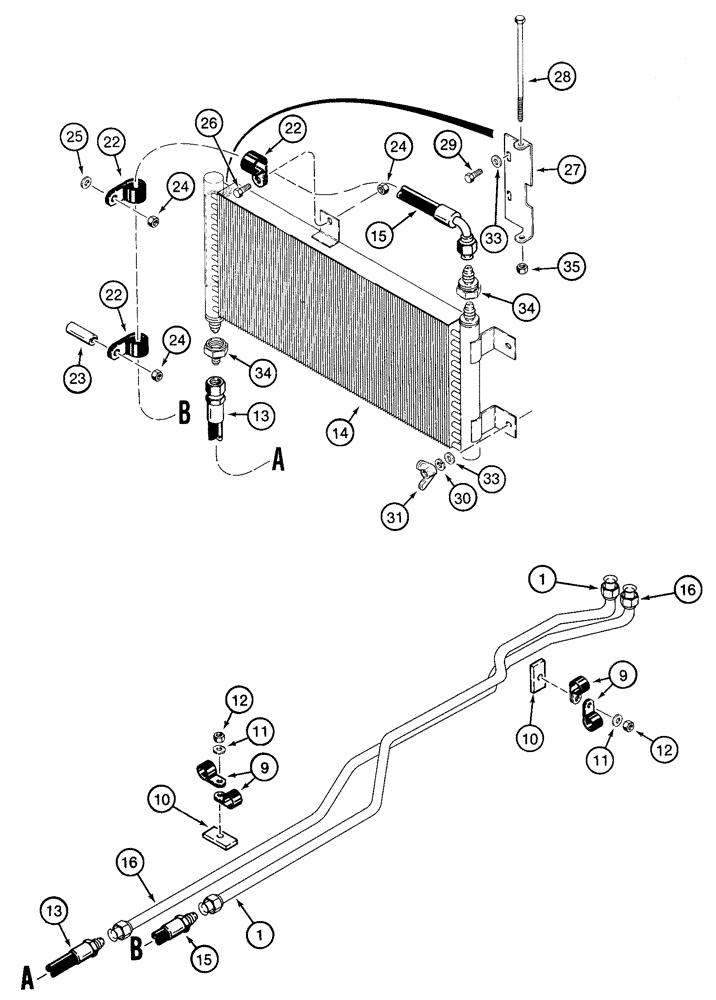

Схема запчастей Case 621C - (05-022) - HYDRAULICS - STEERING, RETURN LINE AND COOLER, NORTH AMERICA ONLY (05) - STEERING
31
1
13
35
14
24
22
11
15
25
16
24
22
16
10
26
33
10
27
24
28
9
23
1
33
30
12
15
34
34
12
11
29
22
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

292135A1

TUBE,25.4 mm OD, 1436, 375 mm Length

attaches to P/N 277937A2 orifice valve block tube, See figures 8-15, 8-21

1шт.

9

515-25254

CLAMP,1", Insul, 1/2" Bolt

Attaches to rear frame

4шт.

10

L119350

SPACER

2шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

292643A1

HOSE ASSY.,25.4mm ID x 975mm L, SAE 100R1

return, 38-7/16 in, (975 mm)

1шт.

14

L127883

OIL COOLER

Hydraulic

1шт.

15

292642A1

HOSE ASSY.,25.4mm ID x 2142mm L, SAE 100R1

supply, 84-3/8 in, (2142 mm)

1шт.

16

278014A1

TUBE,25.4 mm OD, 1608, 378 mm Length

attaches to P/N 277937A2 orifice valve block tube, See figures 8-15, 8-21

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

3шт.

23

L59005

SPACER

lower clamp

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

25

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

26

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

27

L128083

SUPPORT

BRACKET oil cooler

1шт.

28

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

L128214

THUMB SCREW

NUT wing

2шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

34

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

REDUCER, 3/4 fl male x 1 female

2шт.

35

231-1446

NUT,3/8" - 16, Gr 5

1шт.
