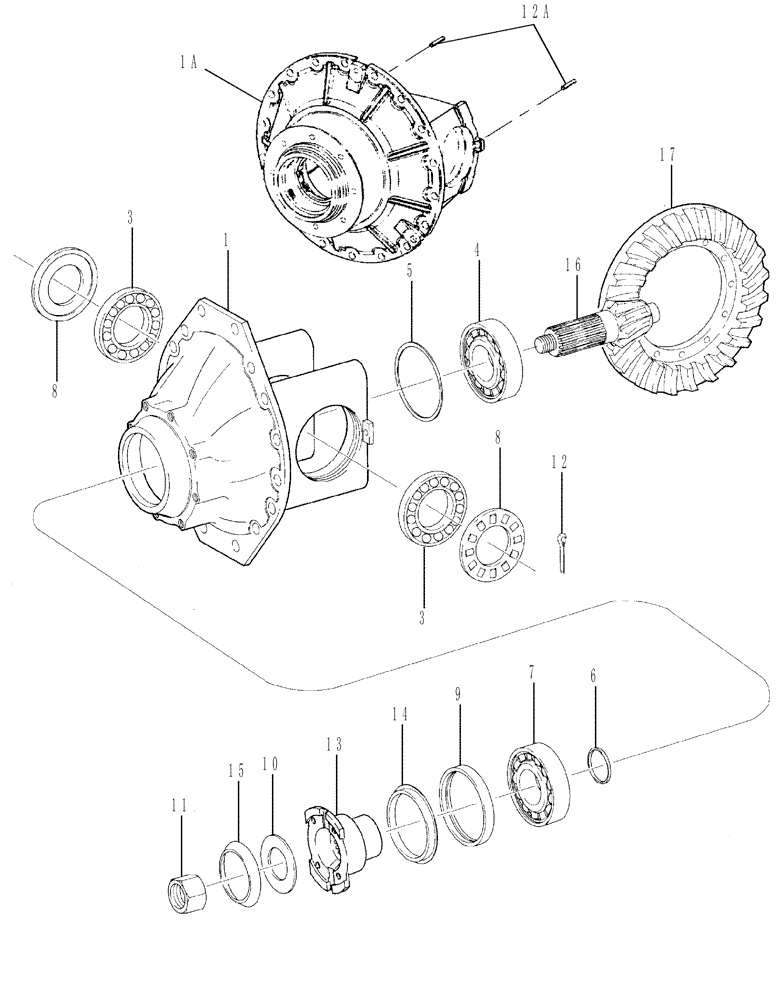

Запчасти Case 721C (06-28) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

313143A1

AXLE HOUSING

Incl. See Figure 06-23 - 06-29, If Used, -JEE0123289

1шт.

293100A1

AXLE

Incl. See Figure 06-23 - 06-30, If Used, JEE0123290-

1шт.

336579A1

DIFFERENTIAL

Incl. 1-17, Incl. Limited Slip Differential, See Figure 06-29 - 06-30, If Used

1шт.

384385A1

AXLE DIFFERENTIAL

Incl. 1-17, Incl. Limited Slip Differential, See Figure 06-29 - 06-30, If Used

1шт.

384385A1R

REMAN-AXLE DIF w/LTD

CORE-AXLE DIFF, w/LTD SLIP REMANUFACTURED AXLE DIFFERENTIAL

1шт.

384385A1C

CORE-AXLE

Return Number

1шт.

1

119221A1

HOUSING ASSY.

Used With 313143A1

1шт.

1a

384391A1

AXLE DIFFERENTIAL

Used With 293100A1

1шт.

3

119223A1

ROLLER BEARING

Left Hand

2шт.

4

119224A1

ROLLER BEARING

Front

1шт.

5

119225A1

SHIM

0,7 mm

1шт.

5

119226A1

BLOCK

0,8 mm

1шт.

5

119227A1

BLOCK

0,9 mm

1шт.

5

119228A1

BLOCK

1,0 mm

1шт.

5

119229A1

BLOCK

1,1 mm

1шт.

5

119230A1

BLOCK

1,2 mm

1шт.

5

119231A1

BLOCK

1,3 mm

1шт.

5

119233A1

BLOCK

1,4 mm

1шт.

5

119293A1

BLOCK

1,5 mm

1шт.

5

119294A1

BLOCK

0,2 mm

1шт.

5

119295A1

BLOCK

0,1 mm

1шт.

6

119296A1

BLOCK

8,8 mm

1шт.

6

898117H1

RING, SNAP

RING SNAP 8,7 mm

1шт.

6

898456H1

RING, SNAP

RING SNAP 8,6 mm

1шт.

6

898451H1

SNAP RING

8,5 mm

1шт.

6

898446H1

RING, SNAP

RING SNAP 8,4 mm

1шт.

6

119296A1

BLOCK

8,8 mm

1шт.

6

119301A1

BLOCK

8,9 mm

1шт.

6

119305A1

BLOCK

9,1 mm

1шт.

6

119309A1

BLOCK

9,2 mm

1шт.

6

119310A1

BLOCK

9,3 mm

1шт.

6

119311A1

BLOCK

9,4 mm

1шт.

7

119312A1

ROLLER BEARING

Rear

1шт.

8

119313A1

NUT

2шт.

9

119315A2

SEAL

Replaces 119315A1

1шт.

10

119316A1

WASHER

1шт.

11

119317A1

NUT

1шт.

12

119318A1

SPLIT PIN/SAFETY PIN

8 x 45 mm, Used With 313143A1

2шт.

12a

838-5636

LOCK PIN,M6 x 36, Slotted

Used with 293100A1

2шт.

13

121346A1

COUPLING FLANGE

Input

1шт.

14

119322A1

PROTECTOR

Used With 313143A1

1шт.

14

384273A1

SHIELD

Used With 293100A1

1шт.

15

119323A1

WASHER

Used With 313143A1

1шт.

336583A1

SET

Incl. 16, 17, Used With 313143A1

1шт.

385370A1

GEAR-SET

Incl. 16, 17, Used With 293100A1

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft

1шт.

17

NSS

NOT SOLD SEPARAT

Gear

1шт.
