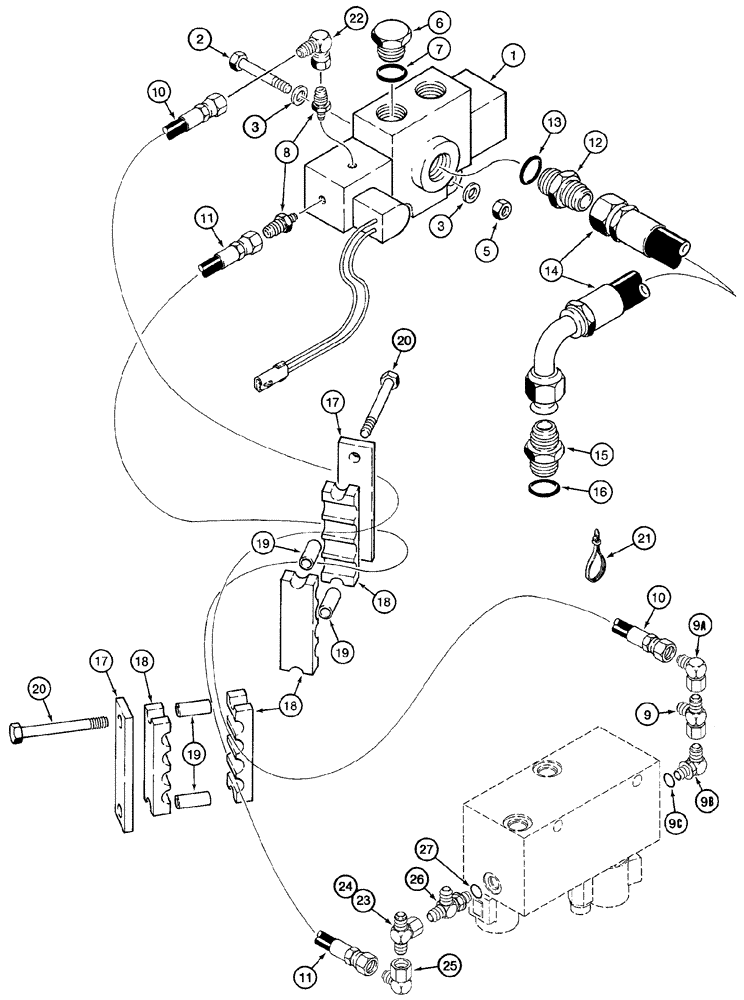

Запчасти Case 721C (08-58) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

Master Valve to Cab and Return Manifold

1шт.

All North American Loaders

1шт.

European Z-Bar Loaders Only

1шт.

1

107866A1

VALVE

Master Directional, See Figure 08-61

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

2шт.

9

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with Coupler and Ride Control, North America Only

1шт.

9a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

9b

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 9C

1шт.

10

304514A1

HOSE ASSY.

2470 mm (97-1/4 in), Master Directional Valve to Combination Valve

1шт.

11

304514A1

HOSE ASSY.

2470 mm (97-1/4 in), Ride Control Pressure to Hydraulic Controller Return Line

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

132978A1

HOSE ASSY.

550 mm (21-3/4 in), Master Directional Valve to Loader Control Valve End Cover

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

L124270

LARGE PLATE

PLATE, LARGE REF 17 - 21 are used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller.

2шт.

18

L124271

FIXING BRACKET

4шт.

19

L126936

SPACER

4шт.

20

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

Replaces 827-10120

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

23

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

Incl. 24

1шт.

25

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

26

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 27

1шт.

9c

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
