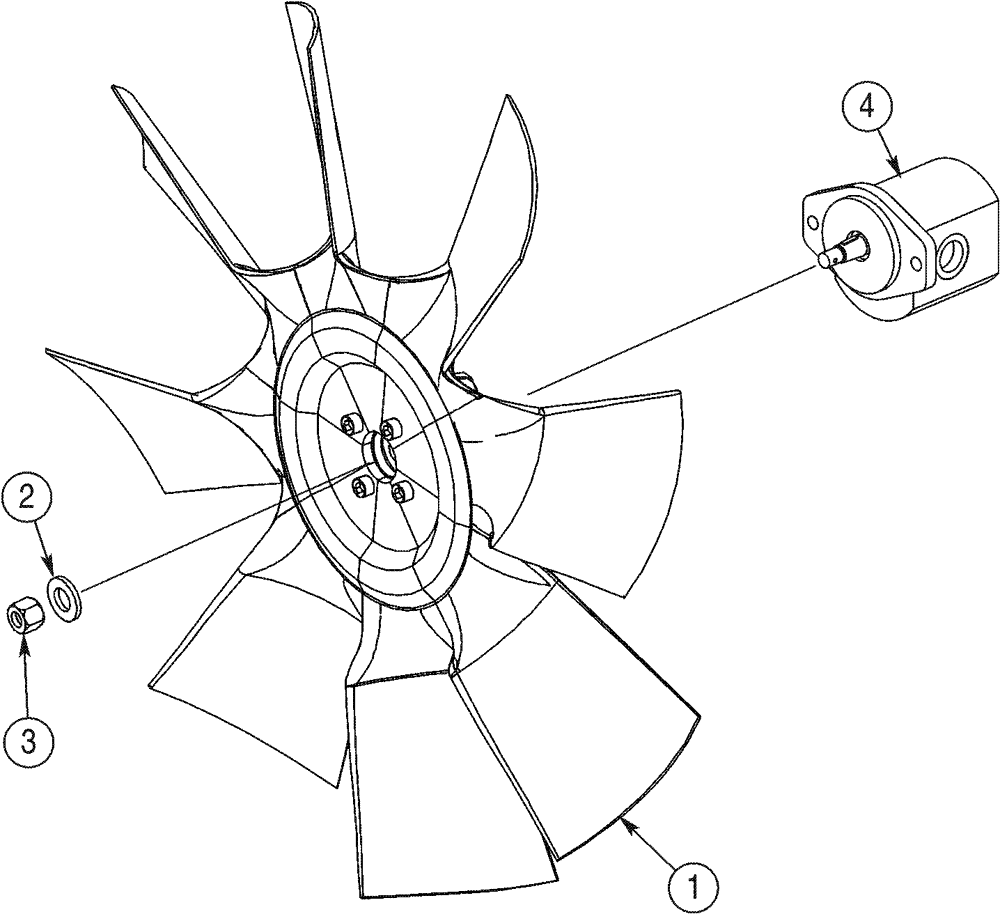

Запчасти Case 821C (02-08) - FAN MOUNTING (02) - ENGINE

*

All Models JEE0126216-

1шт.

1

396618A1

FAN,6 Blades

34 in

1шт.

1

427010A1

FAN,8 Blades

30 in

1шт.

2

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

3

232-24410

LOCK NUT,5/8"-18, GC

1шт.

4

REF

INSTRUCTION

Motor Assy, Fan Drive, Component Parts Not Available at Time of Printing, See Page 08-17

1шт.
