(02-01) - RADIATOR - MOUNTING

Запчасти Case 921C (02-01) - RADIATOR - MOUNTING (02) - ENGINE

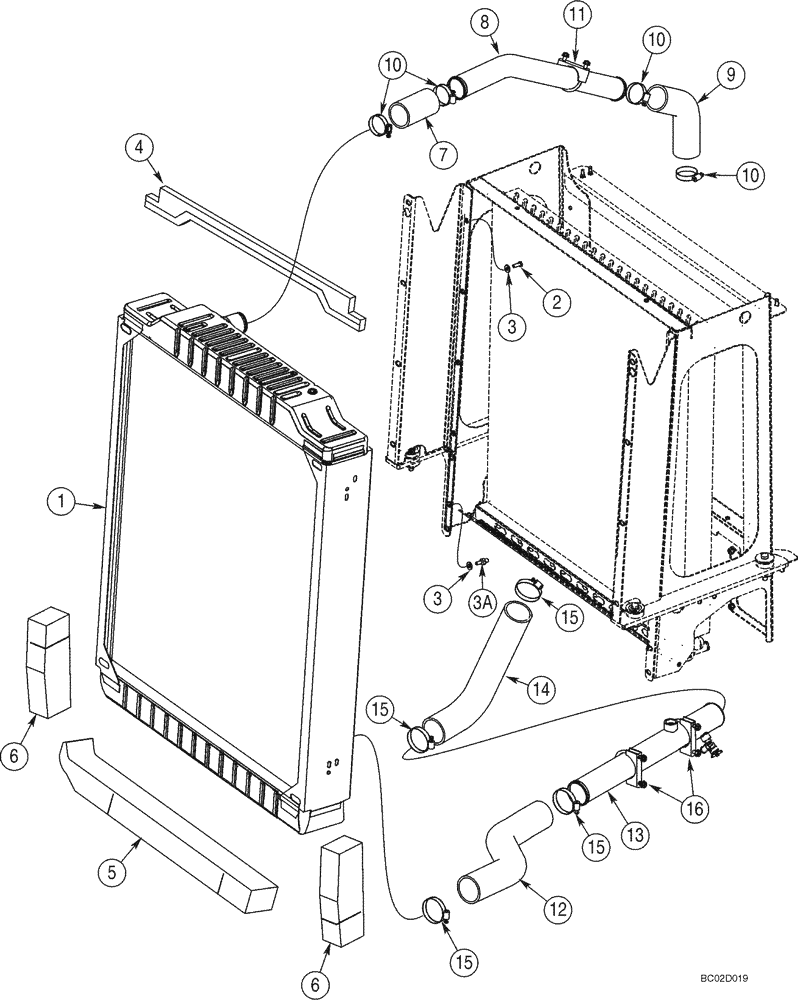

Схема запчастей Case 921C - (02-01) - RADIATOR - MOUNTING (02) - ENGINE
6
8
5
15
14
3
10
7
12
3a
15
16
3
11
6
2
13
1
10
15
15
9
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395586A1

RADIATOR

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

9шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

3a

292523A1

SPECIAL BOLT

Ground

1шт.

4

444519A1

INSULATOR

Radiator; Top

1шт.

5

444520A1

INSULATOR

Radiator; Bottom

1шт.

6

444521A1

INSULATOR

Radiator; Sides

2шт.

7

417638A1

HOSE, BULK,57.20 mm ID x 120.00 mm, SAE 20R4 CLASS D1, SAE J20R4

HOSE, METERS Upper

1шт.

8

417634A1

TUBE

1шт.

9

413060A1

HOSE

To Engine; Upper

1шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

4шт.

11

393632A1

CLAMP

Incl. Hardware

1шт.

12

417639A1

HOSE, BULK,63.50 mm ID x 475.00 mm, SAE 20R4 CLASS D1, SAE J20R4

HOSE, METERS Lower

1шт.

13

419356A3

TUBE

To Surge Tank; Coolant Overflow

1шт.

14

417637A1

HOSE

To Engine; Lower

1шт.

15

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

16

419850A1

CLAMP

Incl. Hardware

2шт.
