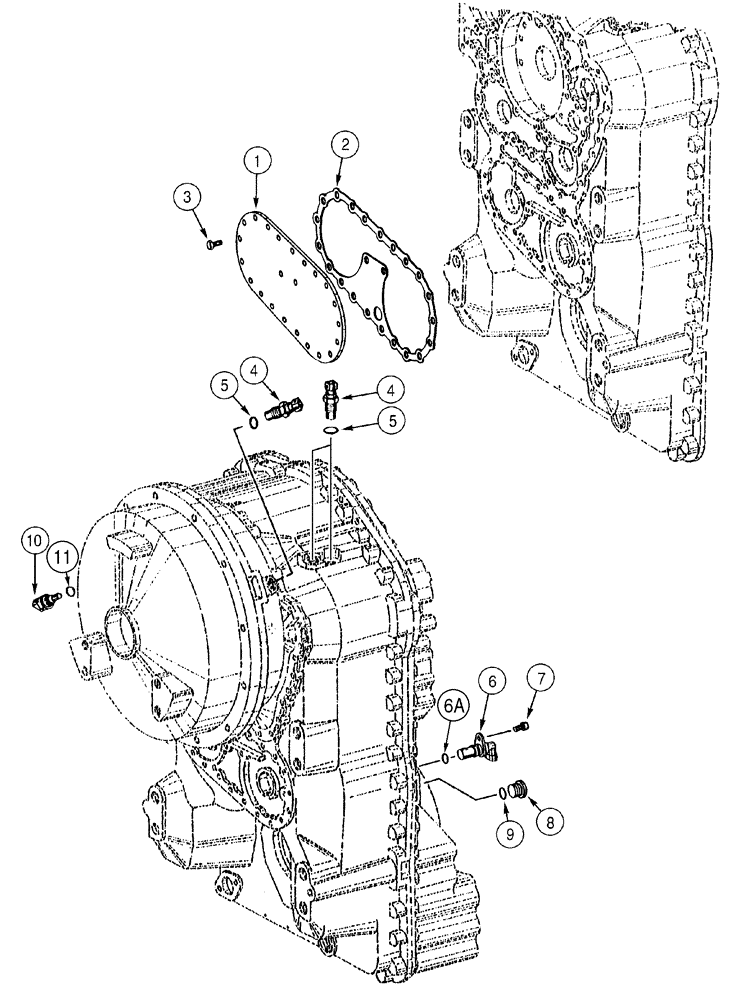

Запчасти Case 521D (06-20) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER (06) - POWER TRAIN

361424A1

TRANSMISSION

Incl. Figure(s) 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling

3шт.

5

8603216

O-RING,2mm Thk x 15mm ID

3шт.

6

8603398

SENSOR

Speed, Output; Incl. 6A

1шт.

6a

8603629

O-RING

1шт.

7

8603399

SCREW,M8 x 16mm

1шт.

8

8603400

PLUG

Incl. 9

1шт.

9

8603401

O-RING,2mm Thk x 23mm ID

1шт.

10

8603622

SENSOR

Temperature; Incl. 11

1шт.

11

8603402

O-RING

1шт.
