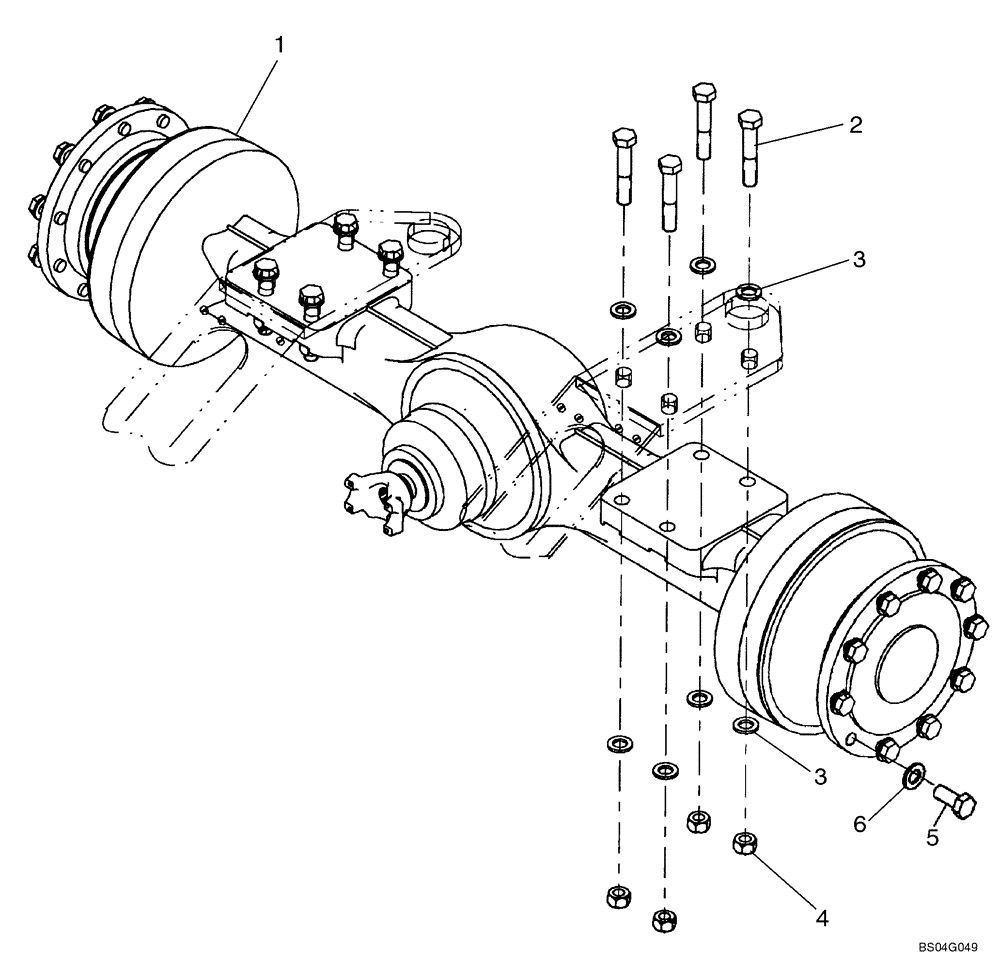

Запчасти Case 521D (06-23) - AXLE, FRONT - MOUNTING (06) - POWER TRAIN

1

87430404

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E

1шт.

1

87313909

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Oil Filled; Replaces 87430404; Compnents Same As 87430404

1шт.

1

87358576

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Same As 87313909 Except Wheel End Assembly Changes

1шт.

2

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

16шт.

4

829-1424

NUT,M24, Cl 10

8шт.

5

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

20шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

8603201

BREATHER

Not Illustrated; If Used

1шт.
