(08-20B) - VALVE ASSY - PISTON AXIS - XT

Запчасти Case 521D (08-20B) - VALVE ASSY - PISTON AXIS - XT (08) - HYDRAULICS

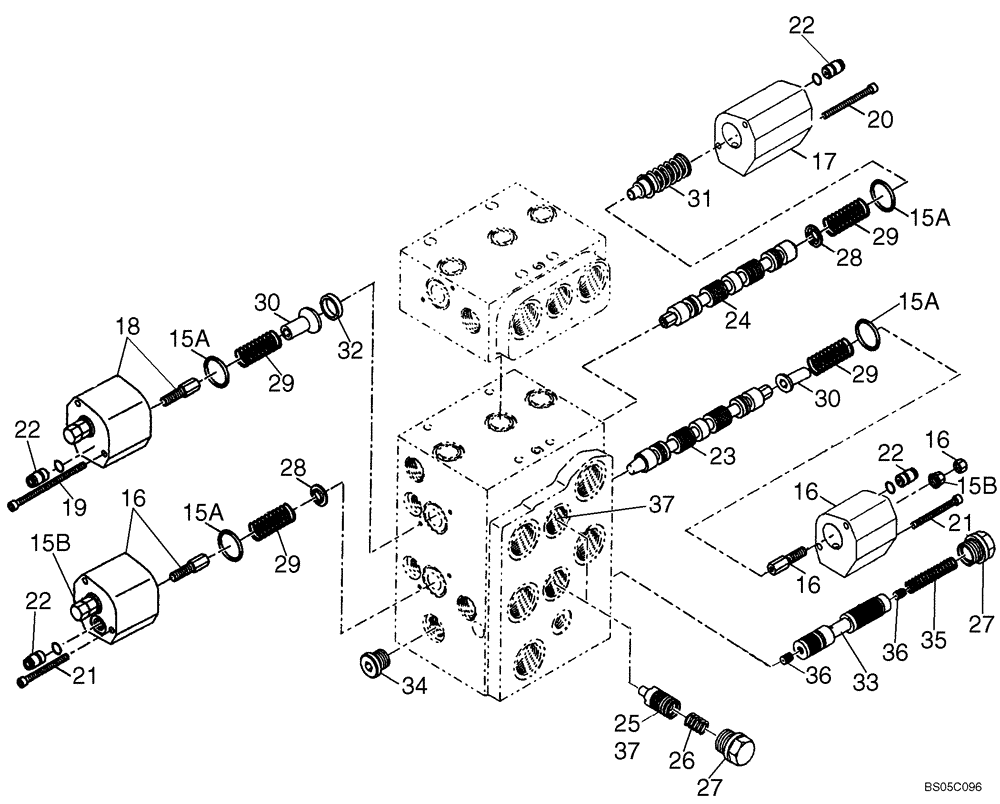

Схема запчастей Case 521D - (08-20B) - VALVE ASSY - PISTON AXIS - XT (08) - HYDRAULICS
15a
22
15a
21
15a
22
28
15b
37
26
37
15b
29
33
27
16
30
31
27
23
16
25
18
29
22
21
35
16
24
28
17
32
36
15a
22
30
36
29
29
34
20
19
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TWO, THREE, AND FOUR SPOOL VALVES FOR XT MODELS

1шт.

15

8604575

SEAL KIT

Incl. 15A, 15B; For Refs. 16, 17, 18

1шт.

15a

NSS

NOT SOLD SEPARAT

O-Ring; 25.07 x 2.62

4шт.

15b

NSS

NOT SOLD SEPARAT

Lock Nut; M8 x 1

2шт.

16

8604576

COVER

2шт.

17

87311972

COVER

1шт.

18

8605577

COVER

1шт.

19

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

20

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

M5 x 85; 10.9

2шт.

21

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 x 55; 8.8

4шт.

22

8604578

CHECK VALVE

Throttle Check Valve; 2 Have Been Removed From Ref 16 Covers.

2шт.

23

87352565

SPOOL

Lift Arm; Replaces 87311898; Used On Valves 87307986, 87307988, 87307990

1шт.

23

87692471

SPOOL

SPOOL, Lift Arm; Used On Valves 87680515, 87680516, 87680517

1шт.

24

87311976

SPOOL

Loader Bucket; Used On Valves 87307986, 87307988, 87307990

1шт.

24

87692470

SPOOL

SPOOL, Loader Bucket; Used On Valves 87680515, 87680516, 87680517

1шт.

25

8604579

VALVE

1шт.

26

8604580

SPRING

Compression

2шт.

27

8604581

SCREW,Lock, M6

Plug; M22 x 1.5

3шт.

28

8604582

RETAINER

Spring

2шт.

29

8604583

SPRING

Compression

4шт.

30

87311984

RETAINER

Retanier

2шт.

31

87311985

SPRING

1шт.

32

87311986

RING

1шт.

33

8604584

PISTON

1шт.

34

87311988

PLUG

1шт.

35

8604586

SPRING

Compression

1шт.

36

87311990

JET

2шт.

37

87311991

SPOOL

1шт.
