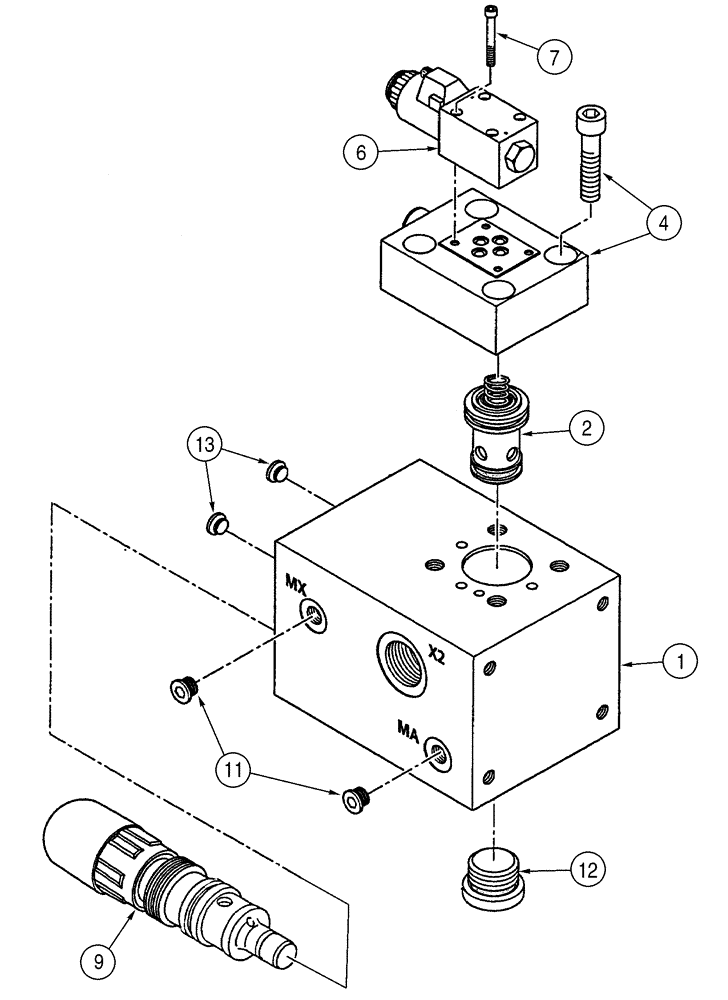

Запчасти Case 521D (08-45) - VALVE ASSY - RIDE CONTROL DIRECTIONAL EU ONLY (08) - HYDRAULICS

404428A1

VALVE

Directional Control; Incl. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604468

VALVE

Control; Incl. 3

1шт.

3

8605179

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

4

8604469

HYDRAULIC VALVE

Relief; Incl. 5

1шт.

5

8605180

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

6

8604600

HYDRAULIC VALVE

Directional; Incl. 6A

1шт.

6a

8605181

SEAL KIT

Seal; Not Illustrated

1шт.

7

8604477

SCREW,M5 x 50mm, Cl 10.9

M5 x 50; 10.9

4шт.

9

8604470

HYDRAULIC VALVE

Pressure Relief; Incl. 10

1шт.

10

8605182

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

11

8604601

LOCK SCREW

2шт.

12

8604602

LOCK SCREW

1шт.

13

8604478

SCREW,Lock

2шт.
