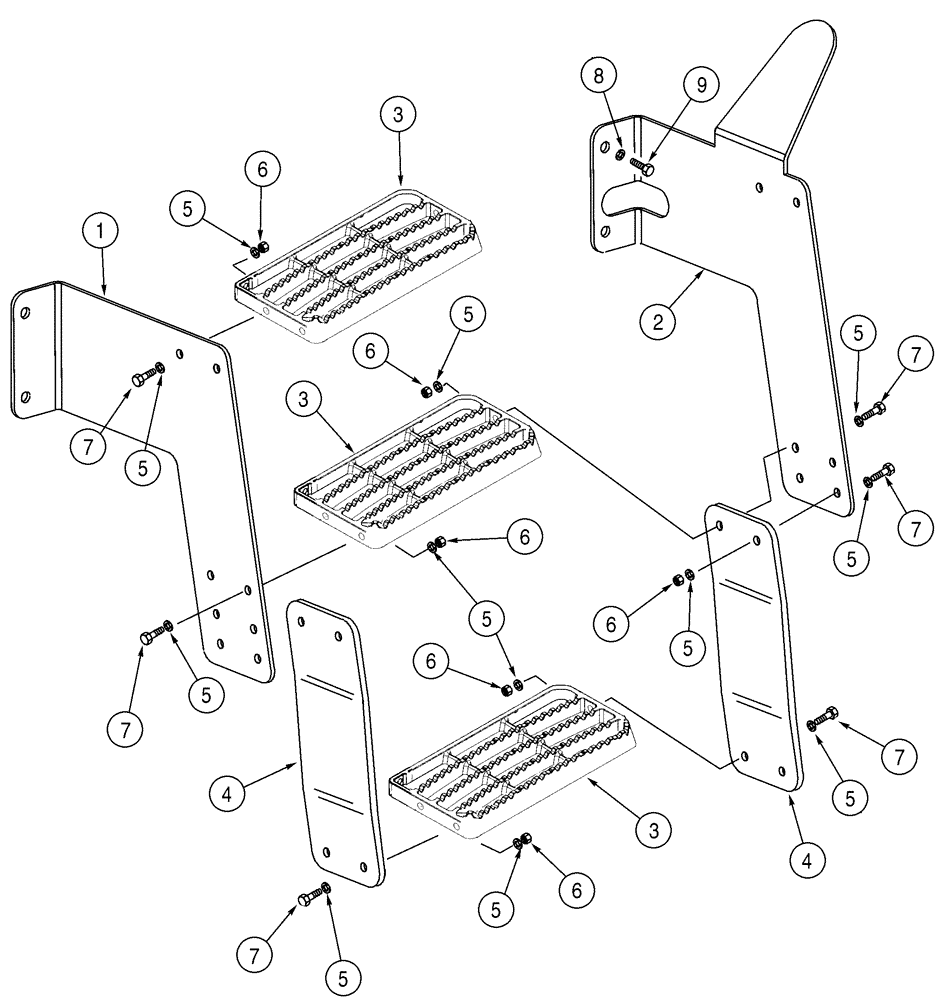

Запчасти Case 621D (09-23) - FENDERS, REAR - STEPS, RIGHT HAND SIDE (09) - CHASSIS

1

390778A2

BRACKET

1шт.

2

390777A1

BRACKET

1шт.

3

257375A1

STEP

Cast Aluminum

3шт.

4

384129A1

BRACKET

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
