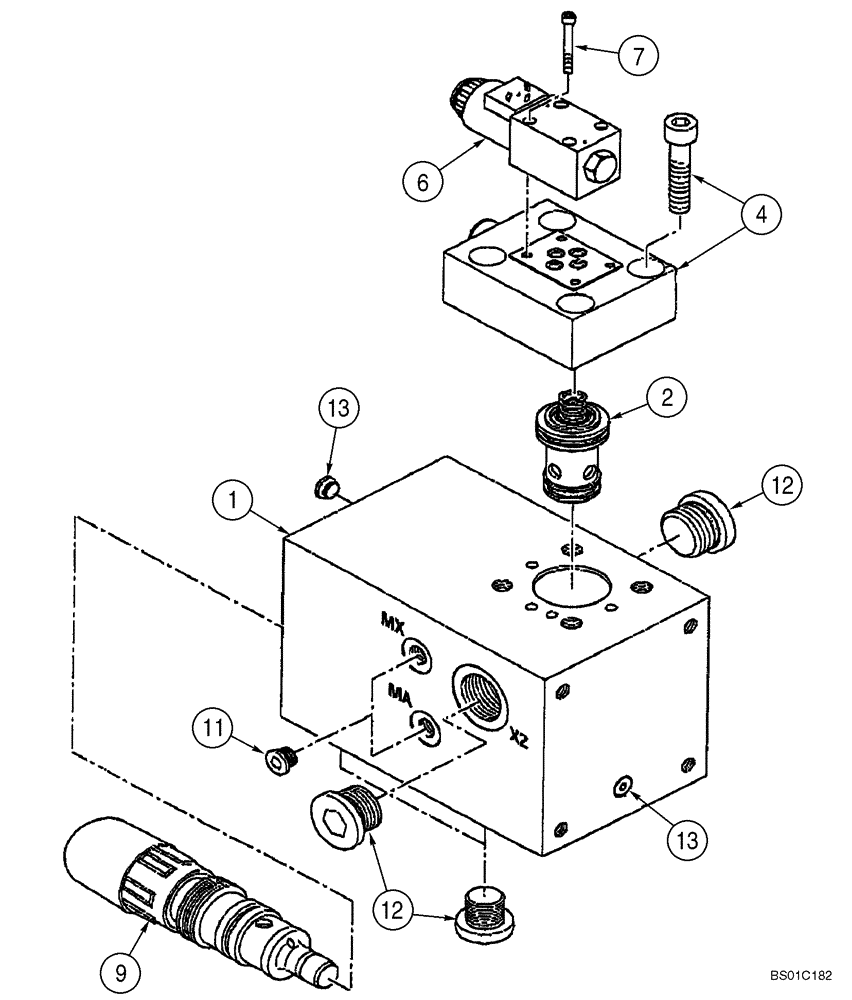

Запчасти Case 621D (08-09D) - VALVE ASSY - RIDE CONTROL DIRECTIONAL - IF USED (08) - HYDRAULICS

390203A1

VALVE, CONTROL

Directional Control; Incl. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8605193

HYDRAULIC VALVE

Control; Incl. 3

1шт.

3

8605203

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

4

8605194

CONTROL VALVE

Relief; Incl. 4A

1шт.

4a

8605206

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

6

8605196

CONTROL VALVE

Control; Directional; Incl. 8

1шт.

7

8604477

SCREW,M5 x 50mm, Cl 10.9

M5 x 50; 10.9

4шт.

8

8605209

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

9

8605198

CONTROL VALVE

Pressure Relief; Incl. 10

1шт.

10

8605212

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

11

8602898

LOCK SCREW

2шт.

12

8605202

PLUG

4шт.

13

8605200

PLUG

2шт.
