(08-16A) - VALVE ASSY - PISTON AXIS - XT

Запчасти Case 621D (08-16A) - VALVE ASSY - PISTON AXIS - XT (08) - HYDRAULICS

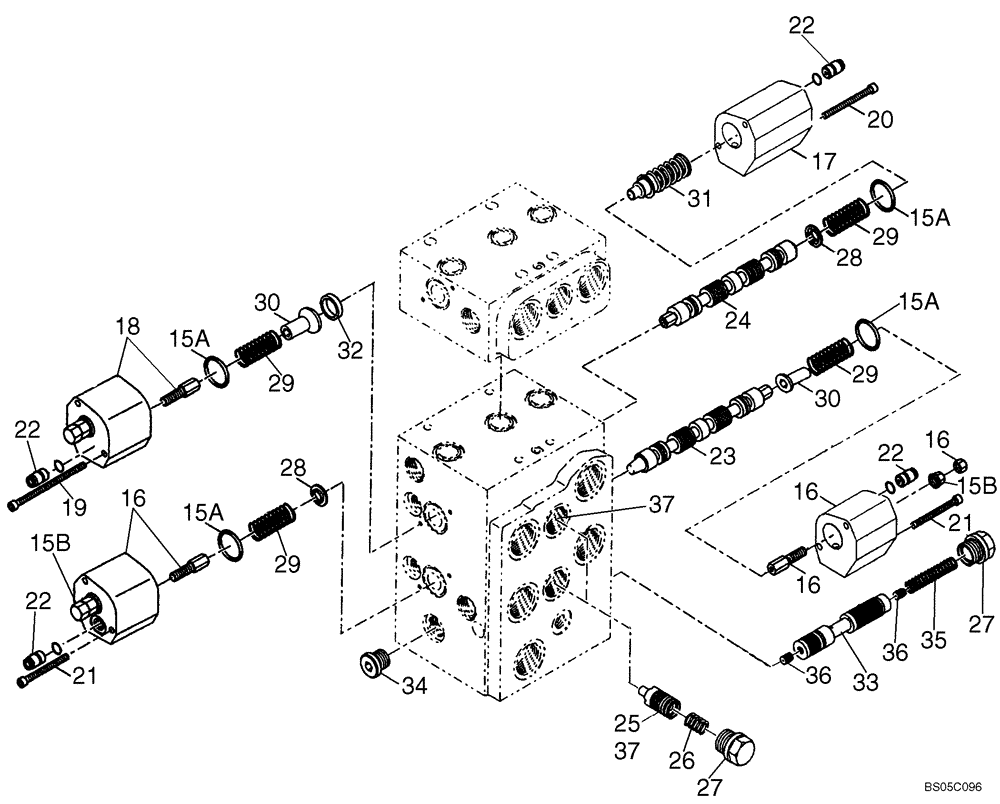

Схема запчастей Case 621D - (08-16A) - VALVE ASSY - PISTON AXIS - XT (08) - HYDRAULICS
34
31
22
16
36
22
36
24
27
18
22
15a
19
29
16
16
25
30
27
20
15a
28
28
21
15a
26
32
15b
29
15b
16
29
37
33
35
30
37
29
15a
17
22
21
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TWO, THREE, AND FOUR SPOOL VALVES FOR XT MODELS

1шт.

15

8604575

SEAL KIT

Incl. 15A, 15B; For Refs. 16, 17, 18

1шт.

15a

NSS

NOT SOLD SEPARAT

O-Ring; 25.07 x 2.62

4шт.

15b

NSS

NOT SOLD SEPARAT

Lock Nut; M8 x 1

2шт.

16

8604576

COVER

2шт.

17

87311972

COVER

1шт.

18

8605577

COVER

1шт.

19

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

20

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

M5 x 85; 10.9

2шт.

21

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 x 55; 8.8

4шт.

22

8604578

CHECK VALVE

Throttle Check Valve; 2 Have Been Removed From Ref 16 Covers.

2шт.

23

87352565

SPOOL

Lift Arm; Replaces 87311898; Used On Valves 87307986, 87307988, 87307990

1шт.

23

87692471

SPOOL

SPOOL, Lift Arm; Used On Valves 87680515, 87680516, 87680517

1шт.

24

87311976

SPOOL

Loader Bucket; Used On Valves 87307986, 87307988, 87307990

1шт.

24

87692470

SPOOL

SPOOL, Loader Bucket; Used On Valves 87680515, 87680516, 87680517

1шт.

25

8604579

VALVE

1шт.

26

8604580

SPRING

Compression

2шт.

27

8604581

SCREW,Lock, M6

Plug; M22 x 1.5

3шт.

28

8604582

RETAINER

Spring

2шт.

29

8604583

SPRING

Compression

4шт.

30

87311984

RETAINER

Retanier

2шт.

31

87311985

SPRING

1шт.

32

87311986

RING

1шт.

33

8604584

PISTON

1шт.

34

87311988

PLUG

1шт.

35

8604586

SPRING

Compression

1шт.

36

87311990

JET

2шт.

37

87311991

SPOOL

1шт.
