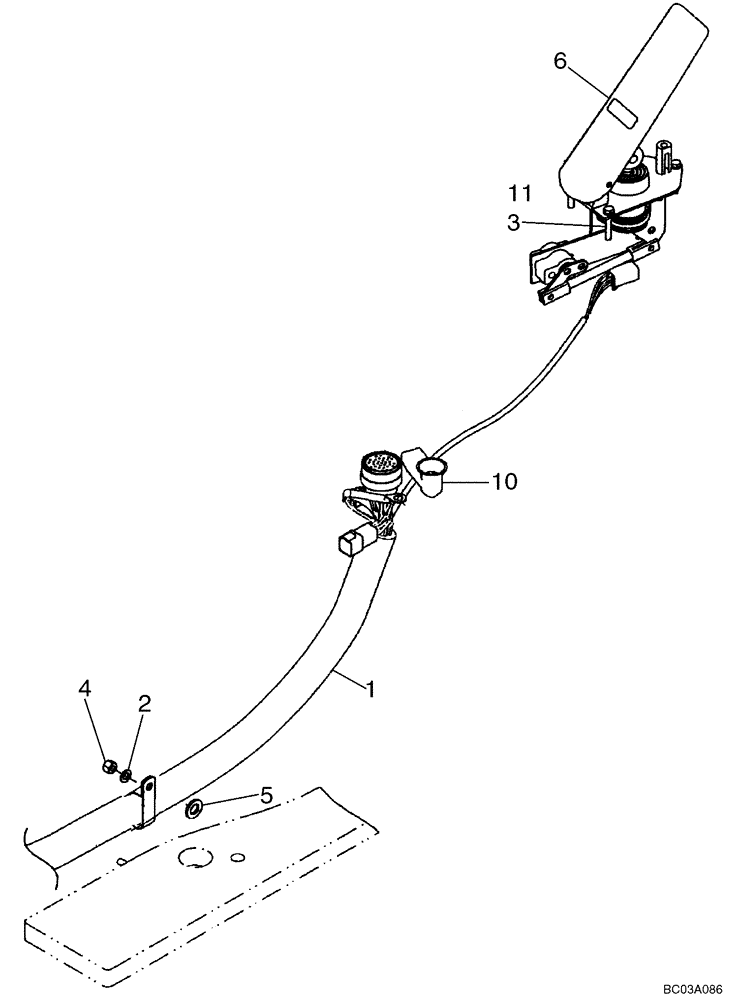

Запчасти Case 721D (04-14A) - HARNESS, REAR CHASSIS - HARNESS, THROTTLE CONTROL (04) - ELECTRICAL SYSTEMS

With Denso Starter

1шт.

1

87439024

WIRE HARNESS

Engine; See Figure 04-?? For Continuation of Harness; Replaces 8605184

1шт.

1

87450578

WIRE HARNESS

Engine; See Figure 04-?? For Continuation of Harness; Replaces 87439024

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

3

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

3шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

8500677

THROTTLE CONTROL

Analog; Includes Services Kits, Ref 7 - 9

1шт.

7

8603127

REPAIR KIT

E-Pedal Sensor, Not Illustrated

1шт.

8

8603128

REPAIR KIT

E-Pedal Spring; Not Illustrated

1шт.

9

8603129

REPAIR KIT

E-Pedal Bellows; Not Illustrated

1шт.

10

L126713

BOOT

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
