(06-28[01]) - AXLE - FRONT / REAR - LIMITED SLIP DIFFERENTIAL (87700464) (3)

Запчасти Case 1221E (06-28[01]) - AXLE - FRONT / REAR - LIMITED SLIP DIFFERENTIAL (87700464) (3) (06) - POWER TRAIN

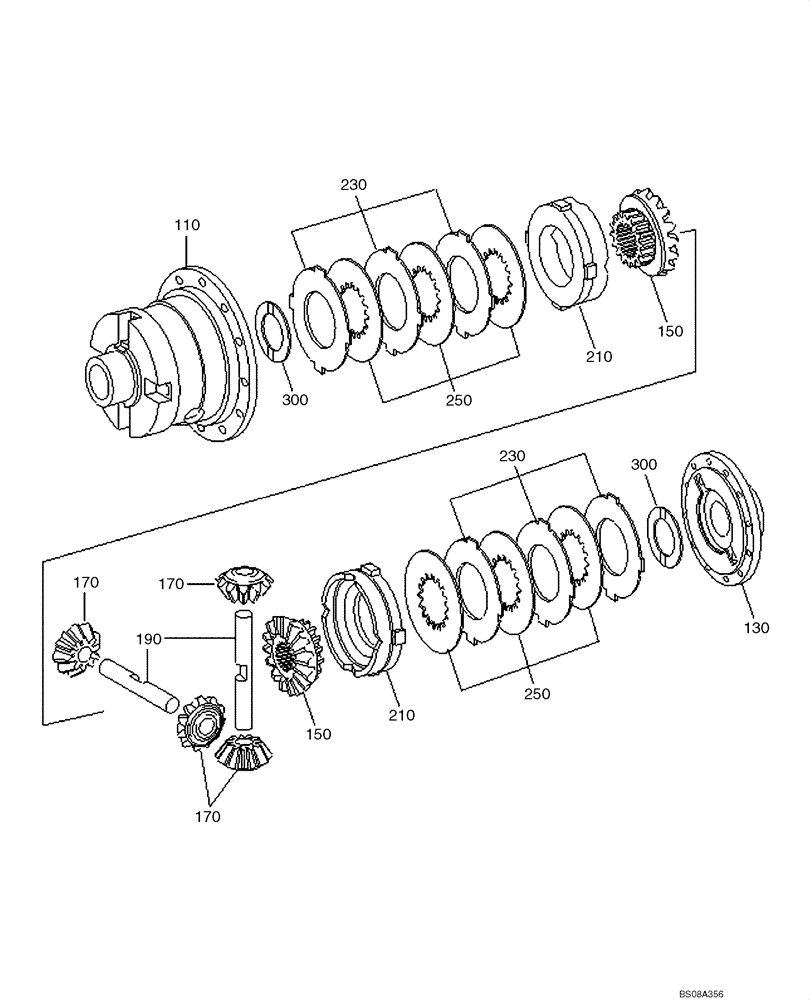

Схема запчастей Case 1221E - (06-28[01]) - AXLE - FRONT / REAR - LIMITED SLIP DIFFERENTIAL (87700464) (3) (06) - POWER TRAIN
150
170
210
230
230
150
300
300
250
210
190
110
170
250
130
170
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ZGAQ-01607

DIFFERENTIAL

LIMITED SLIP DIFFERENTIAL

1шт.

110

ZGAQ-01608

HOUSING

DIFFERENTIAL

1шт.

130

ZGAQ-01609

COVER

HOUSING

2шт.

150

ZGAQ-01610

GEAR SET

BEVEL

2шт.

170

ZGAQ-00062

GEAR

AXLE, BEVEL

4шт.

190

ZGAQ-00063

AXLE DIFFERENTIAL

2шт.

210

ZGAQ-01611

RING

PRESSURE

2шт.

230

ZGAQ-00065

CLUTCH DISC

CLUTCH DISK 4.0

6шт.

230

ZGAQ-00066

CLUTCH DISC

CLUTCH DISK 3.9

6шт.

230

ZGAQ-00067

CLUTCH DISC

CLUTCH DISK 4.1

6шт.

250

ZGAQ-00068

CLUTCH DISC

CLUTCH DISK

6шт.

300

ZGAQ-01612

WASHER

THRUST, FRONT

2шт.

300

ZGAQ-01612

WASHER

THRUST, REAR

2шт.
