(06-33[01]) - AXLE- OIL COOLING PUMP (87700416)

Запчасти Case 1221E (06-33[01]) - AXLE- OIL COOLING PUMP (87700416) (06) - POWER TRAIN

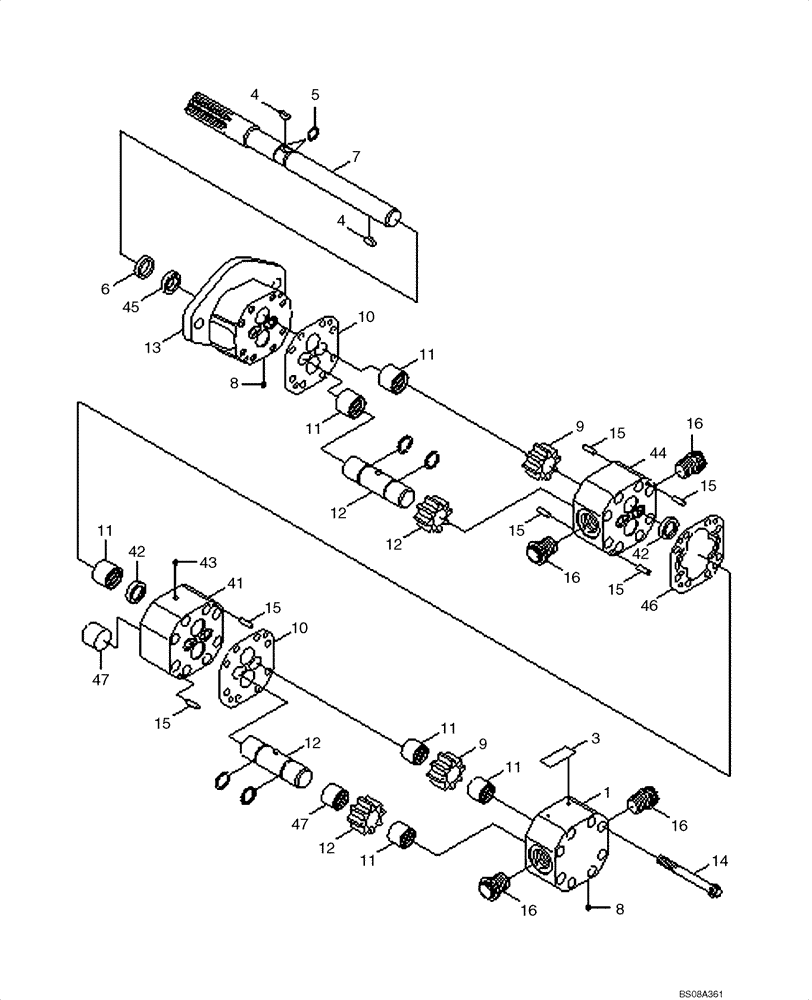

Схема запчастей Case 1221E - (06-33[01]) - AXLE- OIL COOLING PUMP (87700416) (06) - POWER TRAIN
42
9
16
12
47
11
42
8
11
10
14
11
46
10
12
15
41
43
16
4
15
15
11
11
13
47
5
15
4
7
12
45
3
16
9
1
44
15
15
8
6
12
16
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

81L6-10200

PUMP

AXLE COOLING

1шт.

1

87700571

HOUSING

GEAR

1шт.

3

87700572

LABEL

1шт.

4

87700573

KEY

2шт.

5

87700574

RING

CRESCENT

2шт.

6

87700575

SEAL KIT

(Refer To Service Kit No.)

1шт.

7

87700576

SHAFT

DRIVE

1шт.

8

87700577

PLUG

BETA

1шт.

9

87700578

GEAR

GEAR

2шт.

10

87700579

GASKET

AMBER (Refer To Service Kit No.)

1шт.

10-1

87700580

GASKET

SILVER (Refer To Service Kit No.)

1шт.

10-2

87700581

GASKET

GOLD (Refer To Service Kit No.)

1шт.

11

87700582

NEEDLE BEARING

NEEDLE

6шт.

12

87700583

SHAFT

IDLER ASSY

2шт.

13

87700584

STATOR

1шт.

14

87700585

SCREW

8шт.

15

87700586

PIN

SHEAR

6шт.

16

87700587

PLUG

PLASTIC

4шт.

41

87742502

HOUSING

GEAR

1шт.

42

87742503

SEAL

(Refer To Service Kit No.)

2шт.

43

87742504

PLUG

BRONZE

1шт.

44

87742505

HOUSING

GEAR

1шт.

45

87742506

SEAL

(Refer To Service Kit No.)

1шт.

46

87742507

GASKET

1шт.

47

87742508

NEEDLE BEARING

NEEDLE

2шт.

87742509

SEAL KIT

AXLE OIL COOLING PUMP; Includes 6, 10, 42, 45 (Refer To Service Kit No.)

1шт.
