(08-45A) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (4 SPOOL VALVE) (Z-BAR) - IF USED

Запчасти Case 721E (08-45A) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (4 SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS

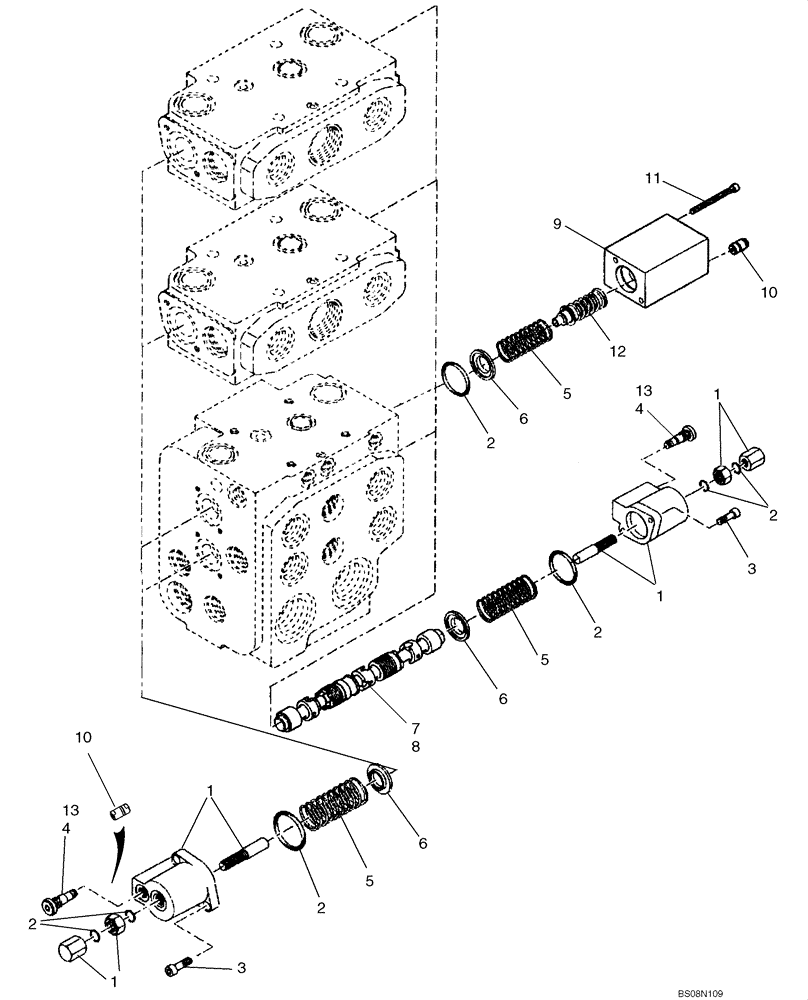

Схема запчастей Case 721E - (08-45A) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (4 SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS
2
2
5
2
4
6
8
11
2
12
6
9
10
1
1
3
1
6
4
10
5
13
2
13
7
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87539264

HYDRAULIC VALVE

Incl. 1 - 13; Also Includes Housing Assembly On Figure 08-44; Replaces 87450852 Valve

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

7шт.

2

8602927

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

4

8602924

CARTRIDGE

M12 x 1,5

5шт.

5

8602917

SPRING

8шт.

6

8602918

RETAINER

Spring

8шт.

7

87311763

SPOOL

Replaces 8602894

3шт.

8

8602895

SPOOL

Boom Spool; Used With Ref 9

1шт.

9

87311762

COVER

For 4 Spool End Cap; Replaces 8602891

1шт.

10

8604578

CHECK VALVE

1-2шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

12

87311768

SPRING

ASSY. Compression for Float

1шт.

13

87311766

PLUG

2шт.
