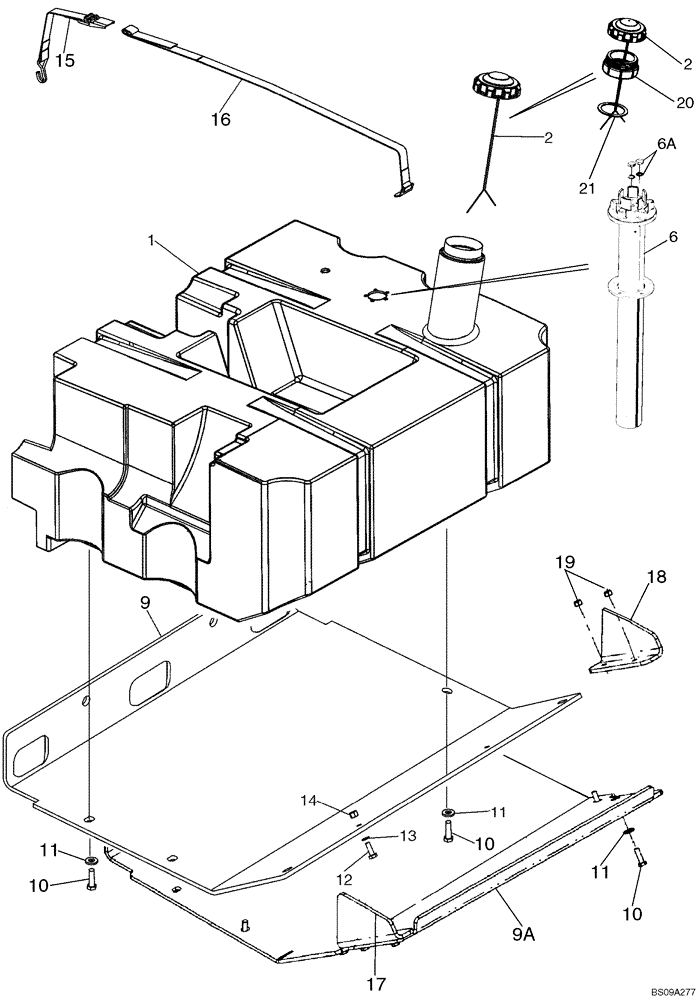

Запчасти Case 721E (03-04) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

8500909

FUEL TANK

Incl. Refs. 2 - 4B

1шт.

2

8604443

FILLER CAP

1шт.

3

87707148

FITTING

Bolt, 3/8-18 NPT; Replaces 87435224; Not Illustrated

1шт.

3a

282709A1

NUT

1-14 UNS-2B; Left Hand Thread; Not Illustrated

1шт.

3b

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Not Illustrated

1шт.

4

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Bolt; 3/4-16 UNF-2A; Left Hand Thread; Replaces 87435505; Not Illustrated

1шт.

4a

1251791C1

JAM NUT,3/4" - 16 LH Thread

3/4-16 UNF-2A; Left Hand Thread; Not Illustrated

1шт.

4b

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Not Illustrated

1шт.

6

87542710

SENDER UNIT

Fuel Level, Incl. Ref. 6A

1шт.

6a

87617083

KIT

NUT PACK, Replaces 355331A1

1шт.

7

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

Used with Sender Unit 87542710, Not Illustrated

5шт.

8

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Used with Sender Unit 87542710, Not illustrated

5шт.

9

8602250

PLATE

Fuel Tank, Used Without Side Plates 87450970, 87450971; If Used

1шт.

9a

87449519

PLATE

Fuel Tank; Used with Side Plates 87450970, 87450971; If Used

1шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6-10шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6-10шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

366905A1

SECURING STRAP

Fuel Tank; Short

2шт.

16

366904A1

SECURING STRAP

Fuel Tank; Long

2шт.

17

87450971

PLATE

Tank, LH, If Used

1шт.

18

87450970

PLATE

Tank, RH, If Used

1шт.

19

829-1412

NUT,M12, Cl 10.9

4шт.

20

84130479

ADAPTER

Fuel Tank; If Used

1шт.

21

84144829

GASKET,67mm ID x 84mm OD x 3mm Thk

GASKET; If Used

1шт.
