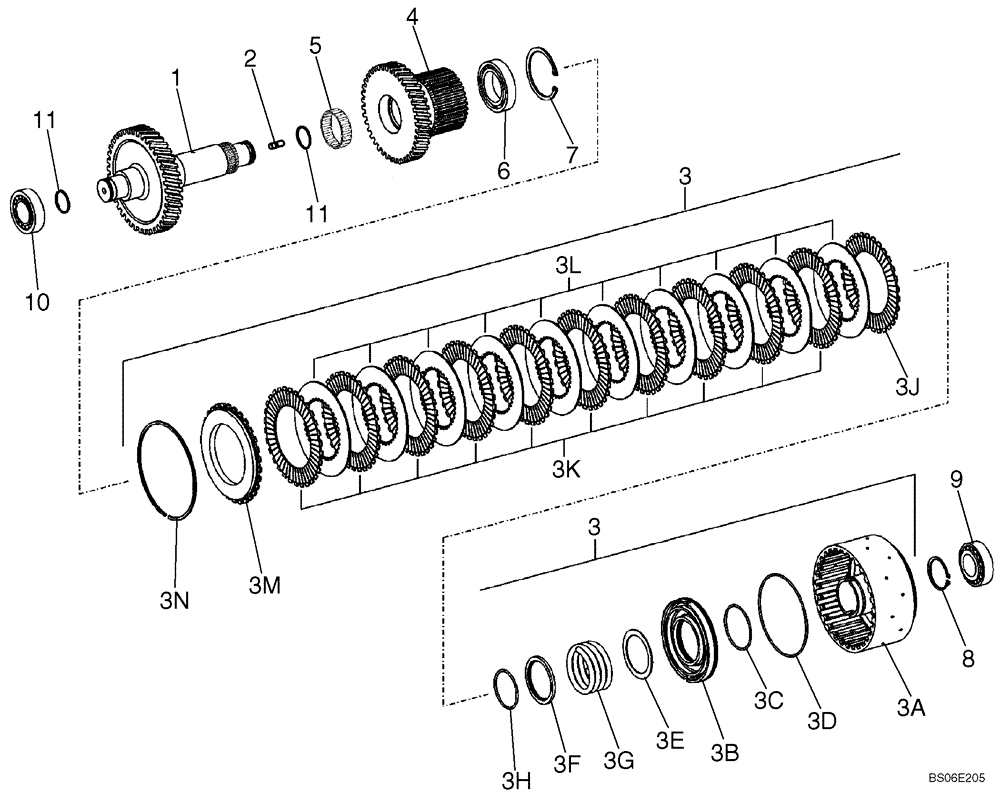

Запчасти Case 821E (06-12) - TRANSMISSION - CLUTCH ASSY, REVERSE - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

331962A1

SHAFT

1шт.

2

331379A1

STUD

M10 x 16

1шт.

3

87521392

CLUTCH ASSEMBLY

Incl. 3A - 3N

1шт.

3a

NSS

NOT SOLD SEPARAT

Disc Carrier

1шт.

3b

NSS

NOT SOLD SEPARAT

Piston

1шт.

3c

NSS

NOT SOLD SEPARAT

O-ring; 75 x 3

1шт.

3d

NSS

NOT SOLD SEPARAT

O-ring; 142 x 3

1шт.

3e

NSS

NOT SOLD SEPARAT

Washer

7шт.

3f

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

3g

NSS

NOT SOLD SEPARAT

Compression Spring

1шт.

3h

NSS

NOT SOLD SEPARAT

Snap Ring

1шт.

3j

NSS

NOT SOLD SEPARAT

Disc

1шт.

3k

NSS

NOT SOLD SEPARAT

Disc

10шт.

3l

NSS

NOT SOLD SEPARAT

Clutch Disc

10шт.

3m

NSS

NOT SOLD SEPARAT

End Shim

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,1 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,25 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,4 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,55 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,7 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 2,85 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,0 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,15 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,3 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,45 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,6 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,75 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 3,90 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 4,05 mm thk

1шт.

3n

NSS

NOT SOLD SEPARAT

Snap Ring, 4,20 mm thk

1шт.

4

331947A1

GEAR, IDLER

GEAR,IDLE

1шт.

5

331478A1

BEARING, ROLLER

2шт.

6

8604716

BALL BEARING

2шт.

7

800-2190

SNAP RING,M90, Int

2шт.

8

331480A1

RETAINER

1шт.

9

331915A1

BEARING, ROLLER

1шт.

10

331411A1

BEARING, ROLLER

1шт.

11

331412A1

RING, SNAP

RING SNAP

2шт.
