(06-17) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N7F203144

Запчасти Case 821E (06-17) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN

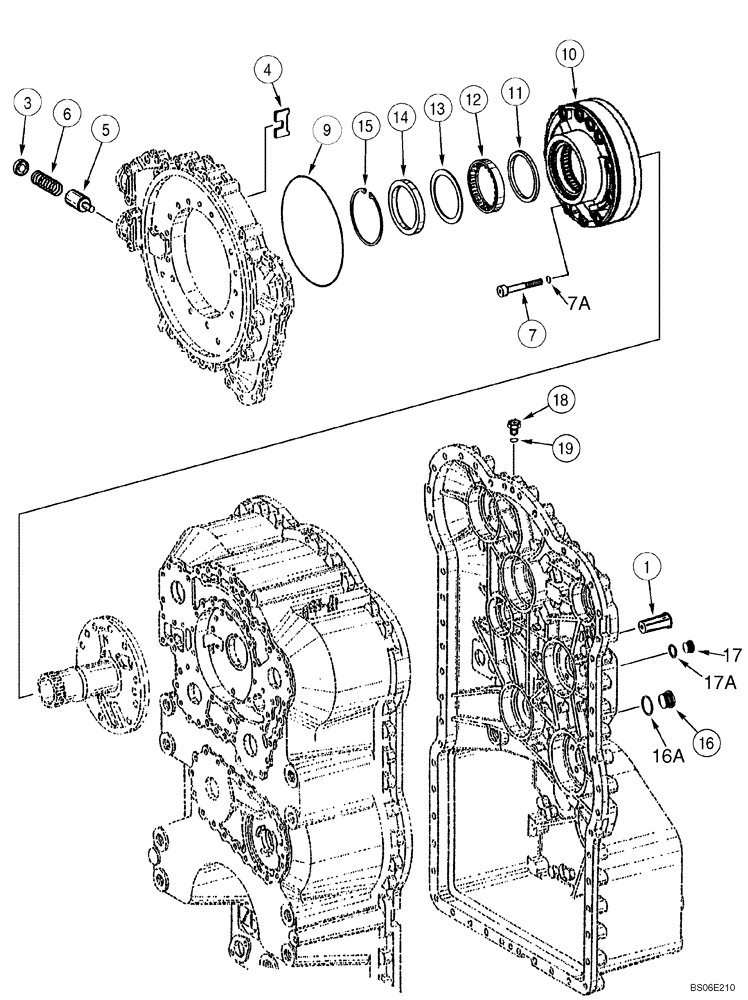

Схема запчастей Case 821E - (06-17) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N7F203144 (06) - POWER TRAIN
17
3
17a
18
1
10
5
7
15
11
16
19
14
9
16a
12
6
4
7a
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87307482

TRANSMISSION

See Figure 06-02 - 06-19, 07-01; Prior To P.I.N. N7F203144

1шт.

87307482R

REMAN-TRANSMISSION

Remanufactured Transmission; 821E, Model Number 4WG210, Stock Number 4657 054 078 - ZF

1шт.

87307482C

CORE-TRANSMISSION

Return number

1шт.

1

331017A1

VALVE

1шт.

2

331018A1

BUSHING

Not Illustrated

1шт.

3

331019A1

CUP ASSY.

1шт.

4

331020A1

WASHER

1шт.

5

331021A1

SPOOL

1шт.

6

331022A1

COMPRESSION SPRING

1шт.

7

331294A1

CAPSCREW,Flg, 5/16" - 18 x 2", Gr 8

Incl. 7A

10шт.

7a

331295A1

O-RING

10шт.

9

331296A1

O-RING

1шт.

10

331645A1

PUMP, HYDRAULIC

Oil Pressure

1шт.

11

331298A1

RING

1шт.

12

331300A1

NEEDLE BEARING

1шт.

13

331299A1

SHIM

1шт.

14

331301A1

SEAL

1шт.

15

331302A1

RING, SNAP

RING SNAP

1шт.

16

331328A1

PLUG

Incl. 16A

1шт.

16a

331329A1

O-RING,2mm Thk x 23mm ID

1шт.

17

330928A1

PLUG

Incl. 17A

2шт.

17a

330929A1

O-RING,2mm Thk x 13mm ID

2шт.
