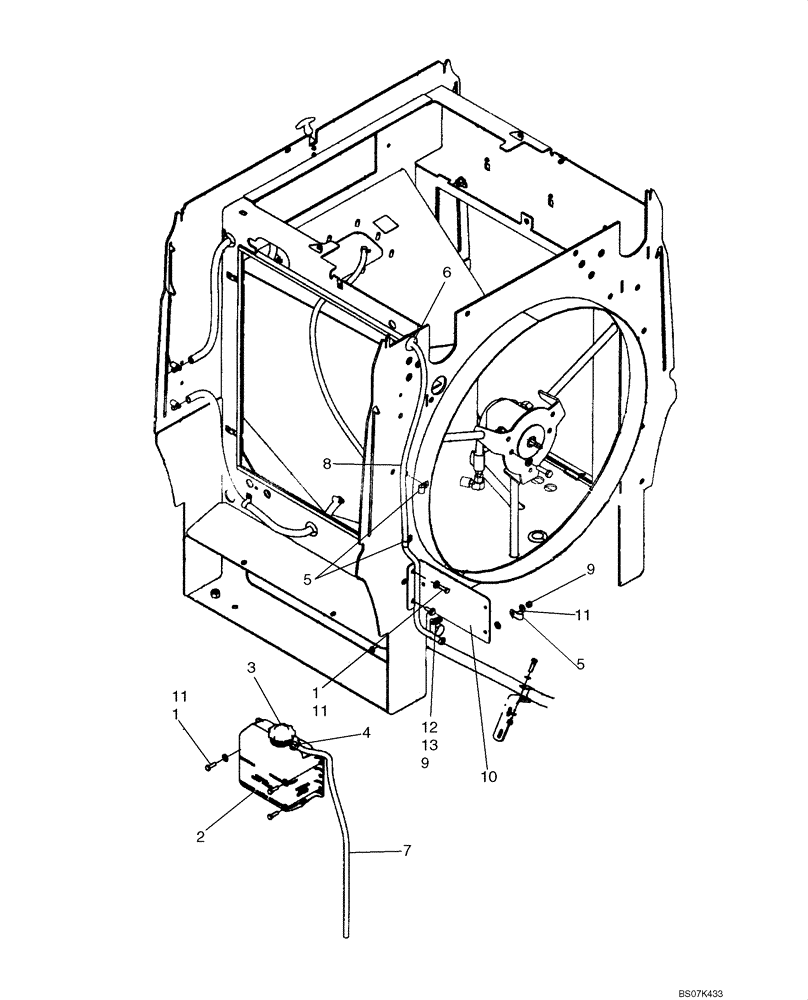

Запчасти Case 821E (02-04) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

2

A184395

RESERVOIR

Coolant Recovery Bottle

1шт.

3

1547924C1

CAP

1шт.

4

A171099

HOSE CLAMP,13.2mm - 15.4mm

2шт.

5

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

6

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

1шт.

7

87541330

HOSE,7.90 mm ID x 695.00 mm

Cut from 31-2855; Reservoir, Drain

1шт.

8

307149A1

HOSE,7.9 mm ID x 1676.40 mm

1676 mm (66 in); Cut From 31-2855; Coolant Recovery

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

87585139

BASE PLATE

Coolant Bottle;Three (3) Coolant Bottle Mounting Holes; If Used

1шт.

10

87354483

PLATE

Coolant Bottle; Four (4) Coolant Bottle Mounting Holes; If Used

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

12

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
