(06-28) - TRANSMISSION - CLUTCH ASSY, REVERSE - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-28) - TRANSMISSION - CLUTCH ASSY, REVERSE - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

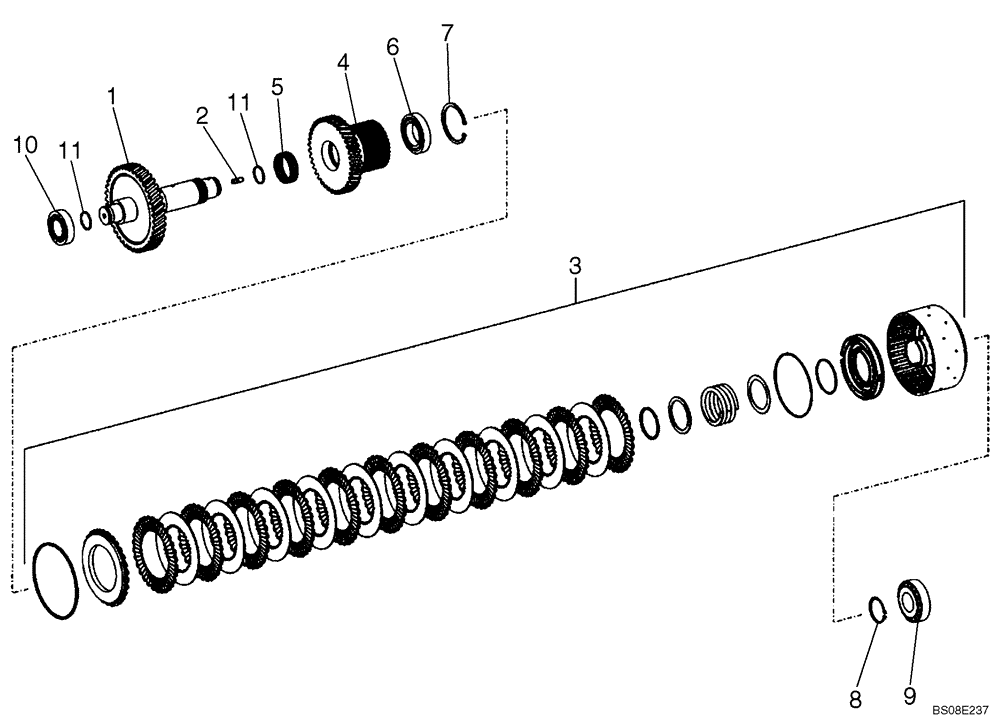

Схема запчастей Case 821E - (06-28) - TRANSMISSION - CLUTCH ASSY, REVERSE - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
3
2
7
9
6
4
1
11
9
11
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - CLUTCH ASSY, REVERSE - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603519

SHAFT

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87757167

EXCHANGE CLUTCH ASSY

Component Parts Not Serviced Separately

1шт.

4

8603518

IDLER GEAR

1шт.

5

8603450

NEEDLE BEARING CAGE

2шт.

6

8604716

BALL BEARING

2шт.

7

800-2190

SNAP RING,M90, Int

2шт.

8

8603452

CIRCLIP

1шт.

9

8603505

ROLLER BEARING,44.45mm ID x 95.25mm OD x 37.78mm W

1шт.

10

8603435

ROLLER BEARING

1шт.

11

8603436

PISTON RING

2шт.
