(06-30) - TRANSMISSION - POWER TAKE OFF - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-30) - TRANSMISSION - POWER TAKE OFF - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

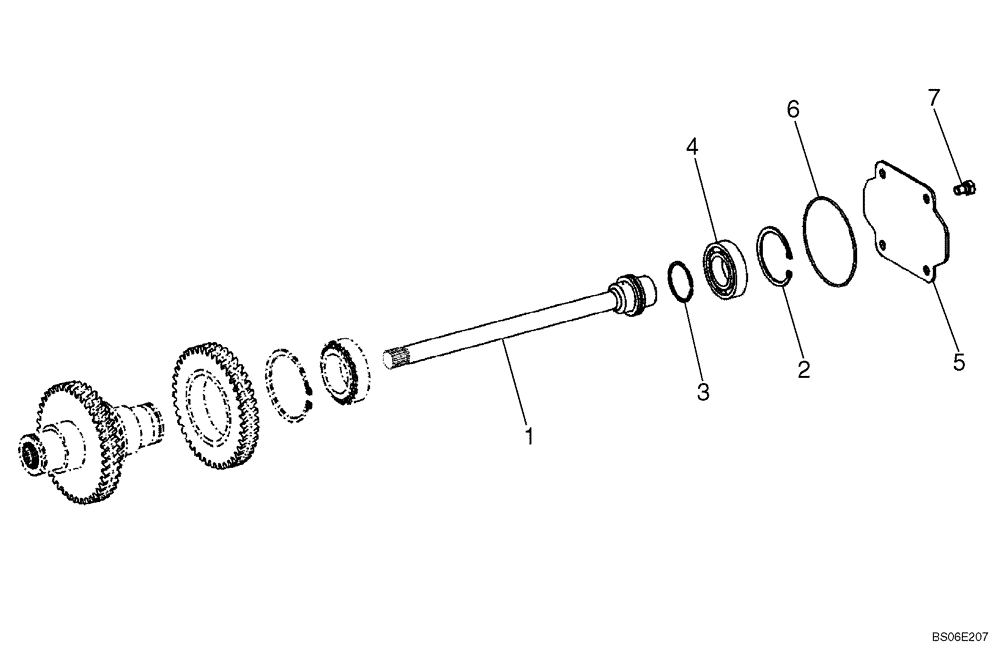

Схема запчастей Case 821E - (06-30) - TRANSMISSION - POWER TAKE OFF - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
3
7
2
5
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figures 06-20 - 06-35; 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - POWER TAKE OFF - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603525

SHAFT

Pump Drive

1шт.

2

8603354

CIRCLIP

1шт.

3

8603302

PISTON RING

1шт.

4

8603353

BALL BEARING

1шт.

5

8603526

COVER

1шт.

6

8603527

O-RING

1шт.

7

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

4шт.
