(06-33) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N7F203144 AND AFTER

Запчасти Case 821E (06-33) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN

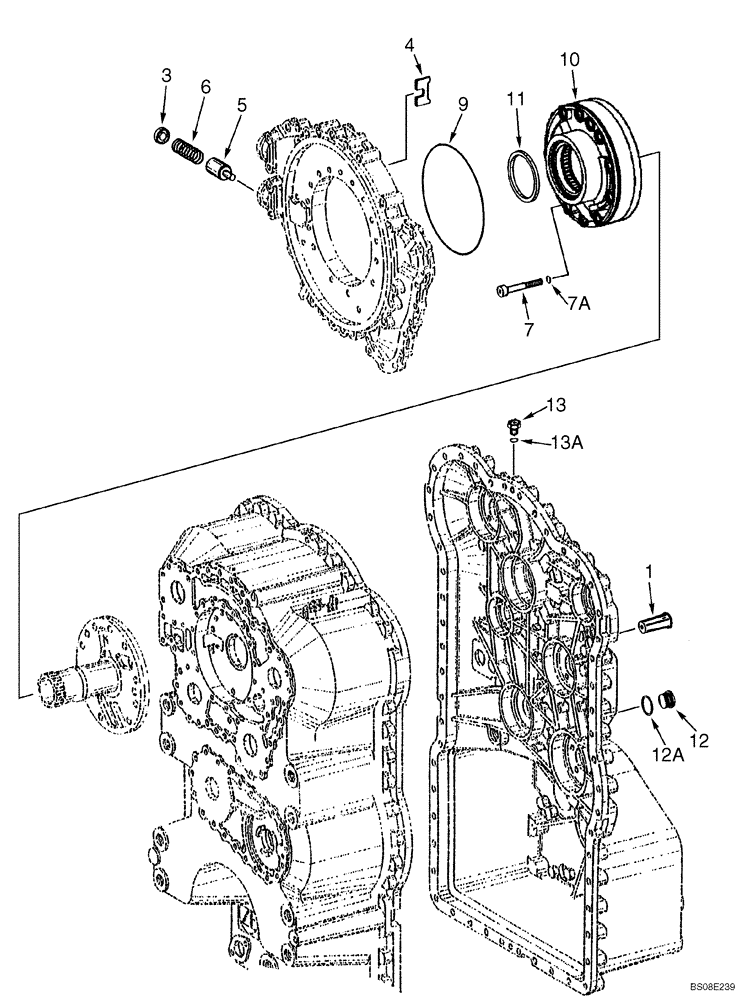

Схема запчастей Case 821E - (06-33) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N7F203144 AND AFTER (06) - POWER TRAIN
13
12a
5
4
9
1
13a
7
6
10
12
11
3
7a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87671890

TRANSMISSION

See Figure 06-20 - 06-35, 07-01; P.I.N. N7F203144 And After

1шт.

87671890R

REMAN-TRANSMISSION

821E TIER 3 TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N7F203144 AND AFTER (8/06 - )

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

1

8603378

VALVE

1шт.

3

8603380

SPRING SEAT

1шт.

4

8603381

PLATE

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

1шт.

7

8603384

SCREW

Incl. Ref. 7A

10шт.

7a

8603385

O-RING

10шт.

9

87712668

O-RING,184.5" ID x 3" Width

1шт.

10

87446110

PUMP, HYDRAULIC

Oil Pressure; Incl. Ref. 11

1шт.

11

8603391

SEAL

1шт.

12

8603400

PLUG

Incl. Ref. 12A

1шт.

12a

8603401

O-RING,2mm Thk x 23mm ID

1шт.

13

8603357

PLUG

Incl. Ref. 13A

2шт.

13a

8603358

O-RING,2mm Thk x 13mm ID

2шт.
